L2LVPN
需求:

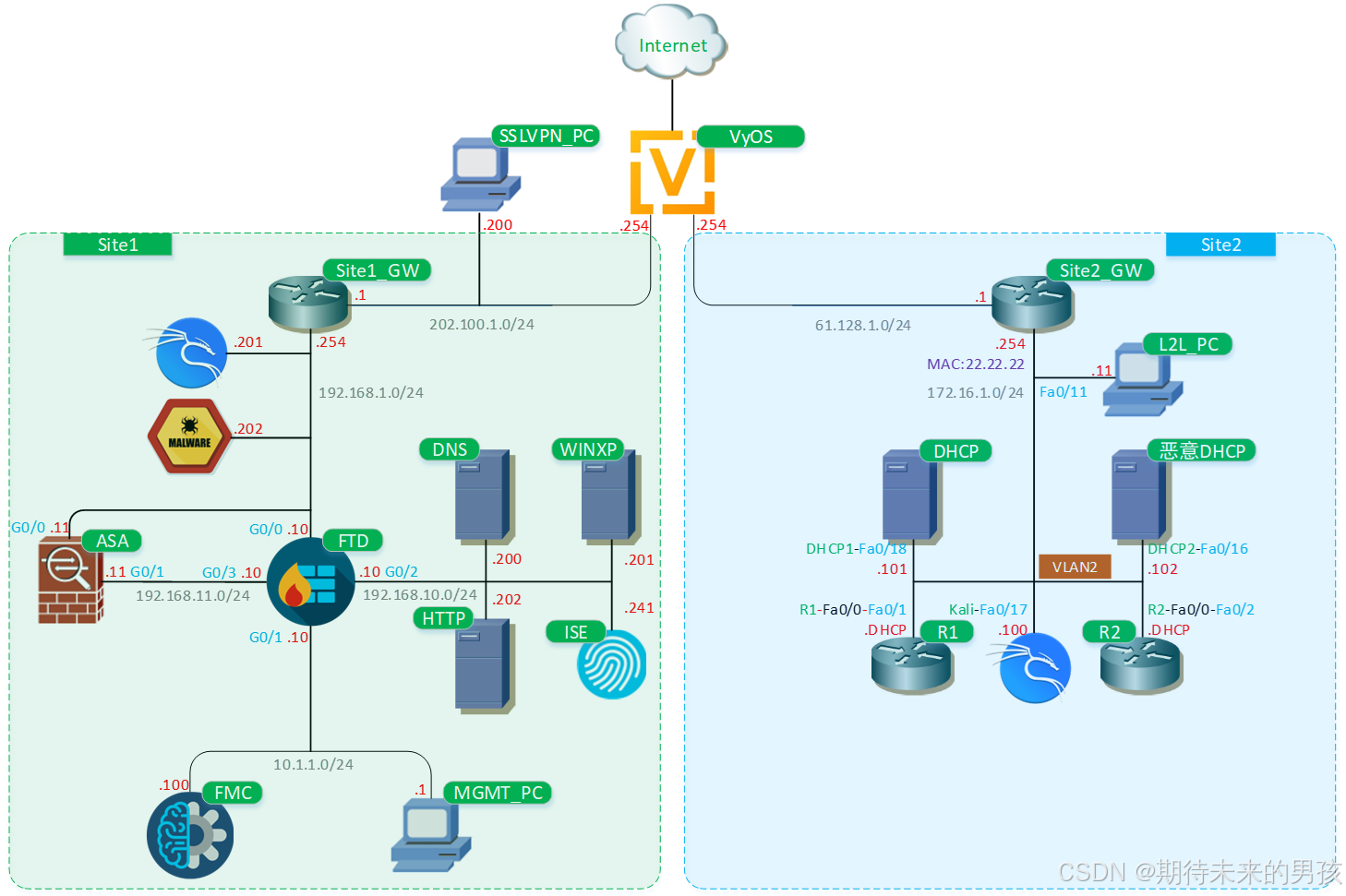

Site1_GW与Site2_GW建立SVTI隧道VPN，两个Site通过隧道建立ospf通讯
Site1通过ospf仅学到Site2的172.16.1.0/24网段的路由
Site2通过ospf学到Site1的10.1.10/24和192.168.10.0/24网段的路由
Site2网络172.16.1.0/24网络通过ospf访问Site1_DMZ_DNS服务器和Site1_DMZ_HTTP服务器，Site1的FMC上放行DNS和HTTP的流量
配置:
Site1_GW配置（贴关键配置，禁止贴show run）
crypto isakmp policy 10
encryption 3des
authentication pre-share
group 2
crypto isakmp key qytang-key address 61.128.1.1
!
!
crypto ipsec transform-set qytang-trans esp-3des esp-sha-hmac
mode tunnel
!
!
crypto ipsec profile qytang-ipsecprof
set transform-set qytang-trans
#
interface Tunnel0
ip address 172.16.100.254 255.255.255.0
ip mtu 1400
tunnel source 202.100.1.1
tunnel mode ipsec ipv4
tunnel destination 61.128.1.1
tunnel protection ipsec profile qytang-ipsecprof
#
route-map s2o permit 10
match tag 10
!
ip route 192.168.10.200 255.255.255.255 192.168.1.10 tag 10
ip route 192.168.10.202 255.255.255.255 192.168.1.10 tag 10
!
router ospf 1
redistribute static route-map s2o
network 172.16.100.0 0.0.0.255 area 0
Site2_GW配置
crypto isakmp policy 10
encryption 3des
authentication pre-share
group 2
crypto isakmp key qytang-key address 202.100.1.1
!
!
crypto ipsec transform-set qytang-trans esp-3des esp-sha-hmac
mode tunnel
!
!
crypto ipsec profile qytang-ipsecprof
set transform-set qytang-trans
#
interface Tunnel0
ip address 172.16.100.253 255.255.255.0
ip mtu 1400
tunnel source 61.128.1.1
tunnel mode ipsec ipv4
tunnel destination 202.100.1.1
tunnel protection ipsec profile qytang-ipsecprof
#
router ospf 1
network 172.16.1.0 0.0.0.255 area 0
network 172.16.100.0 0.0.0.255 area 0

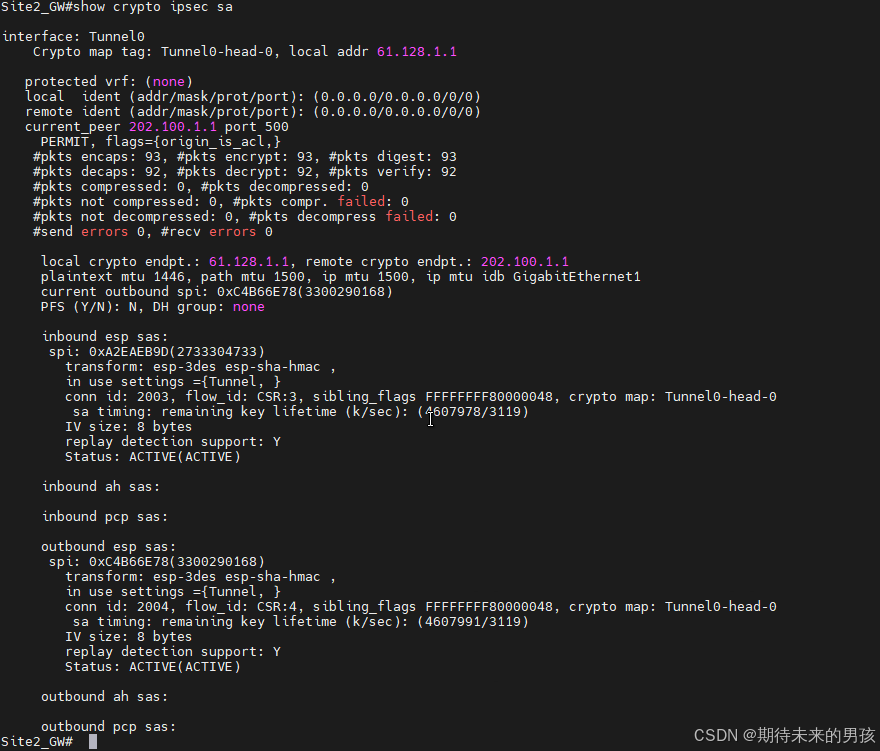

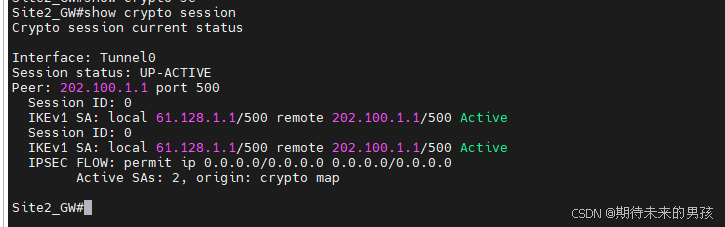

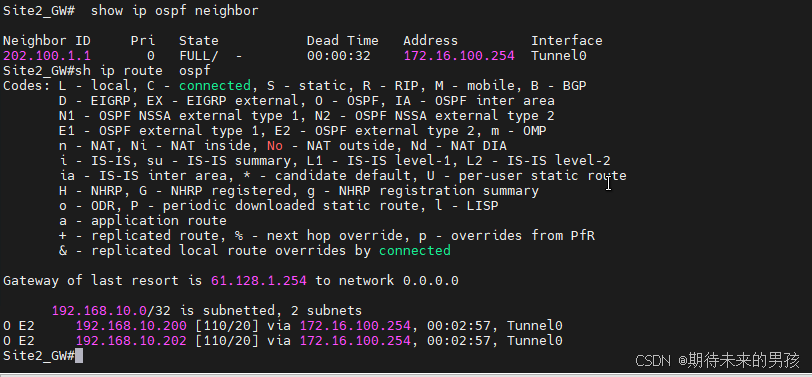

测试:
SSLVPN
需求:
SSLVPN_PC通过anyconnect客户端域名asa.qytangsec.com拨号到Site1_ASA
vpn账号: ssluser 密码:Cisc0123
anyconnect客户端地址池10.1.2.1-10.1.2.100
FTD防火墙放行SSLVPN访问DMZ的http服务器
anyconnect客户端拨号成功后通过域名site1.qytangsec.com访问DMZ的http服务器
配置:（贴关键配置）
Site1_GW配置
Site1_GW(config)# ip nat inside source static 192.168.1.11 202.100.1.100
OR
Site1_GW(config)# ip nat inside source static tcp 192.168.1.11 443 202.100.1.1 8443
ASA配置
dns domain-lookup VPN
dns server-group DefaultDNS
name-server 192.168.10.200
domain-name qytangsec.com
FTD配置

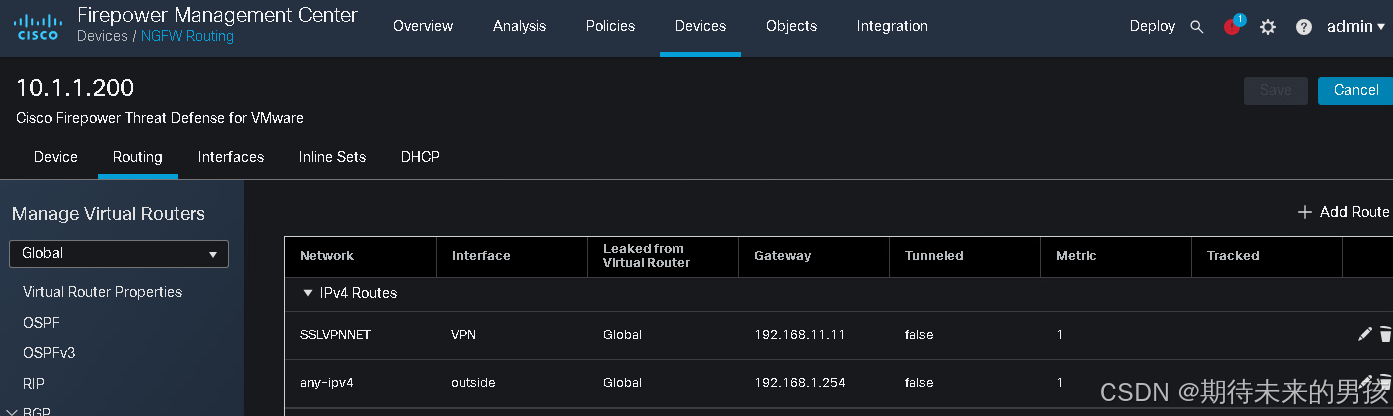

添加回程路由

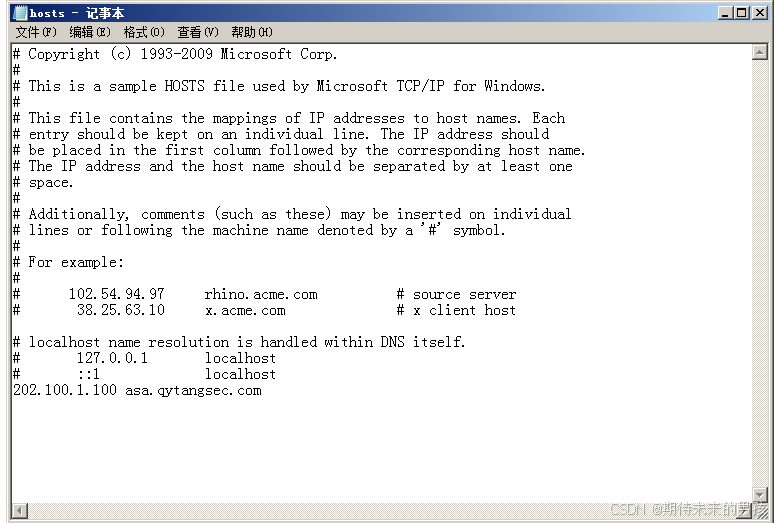

Client添加hosts接续
无客户端
webvpn
enable Outside
username ssluser password Cisc0123
瘦客户端
webvpn
port-forward qytang-pf 2222 192.168.10.202 ssh
group-policy qytangGroupPolicy internal
group-policy qytangGroupPolicy attributes
Webvpn
port-forward enable qytang-pf
username ssluser attributes
vpn-group-policy qytangGroupPolicy
厚客户端
ip local pool sslpool 10.1.2.1-10.1.2.100
webvpn
anyconnect image disk0:/anyconnect-win-4.5.05030-webdeploy-k9.pkg 1
anyconnect enable
group-policy qytangGroupPolicy attributes
dns-server value 192.168.10.200
vpn-tunnel-protocol ssl-client ssl-clientless
split-dns value qytangsec.com
address-pools value sslpool

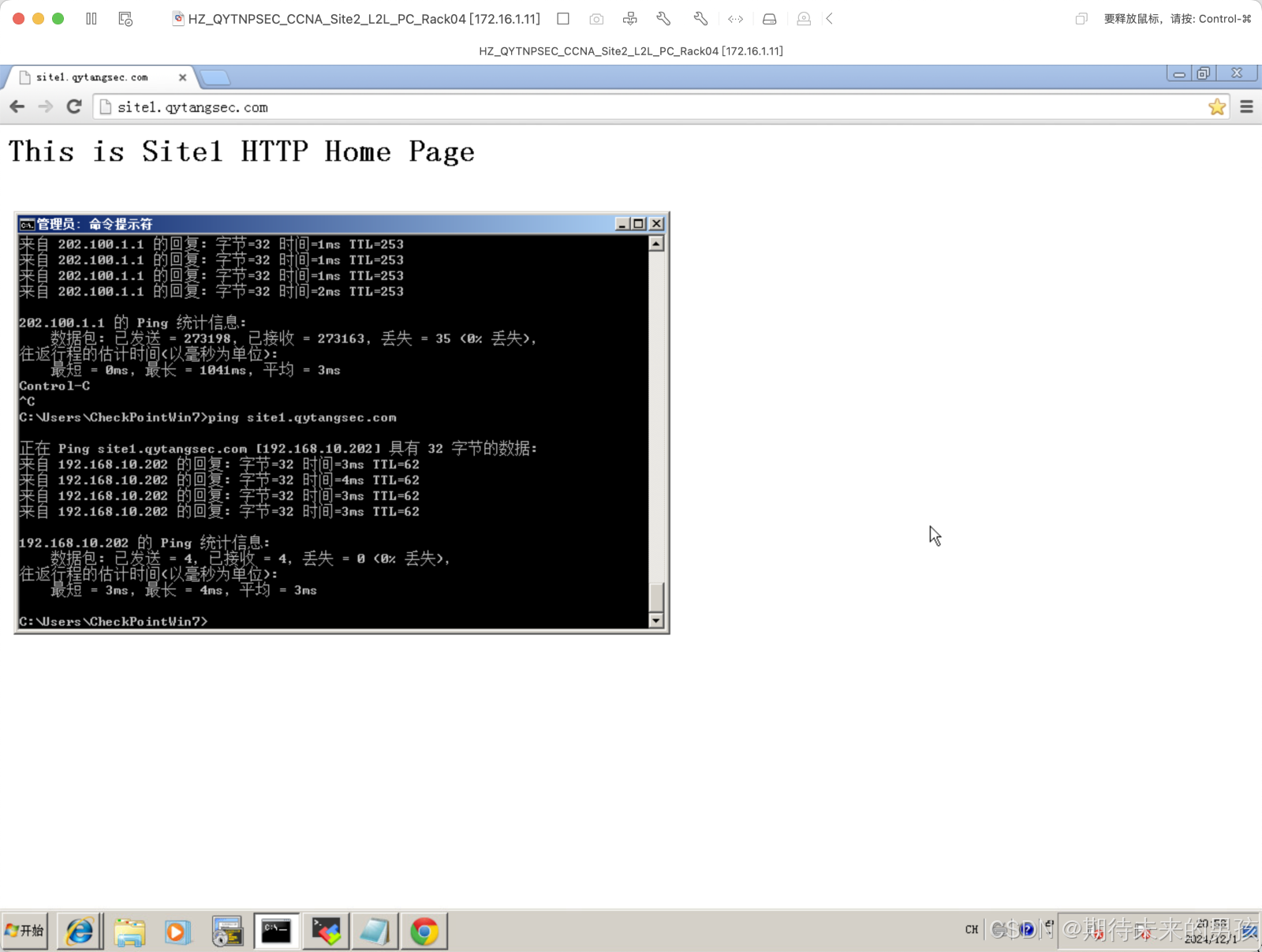

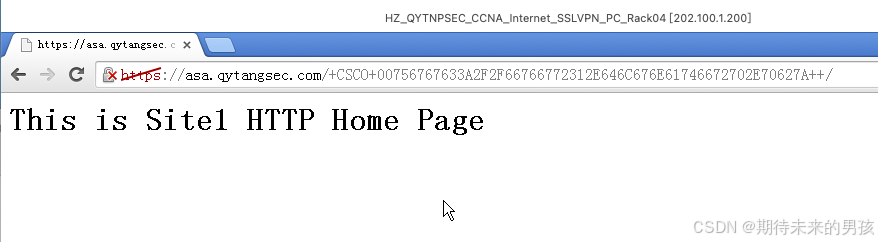

现像:（截图并标记关键操作）
无客户端

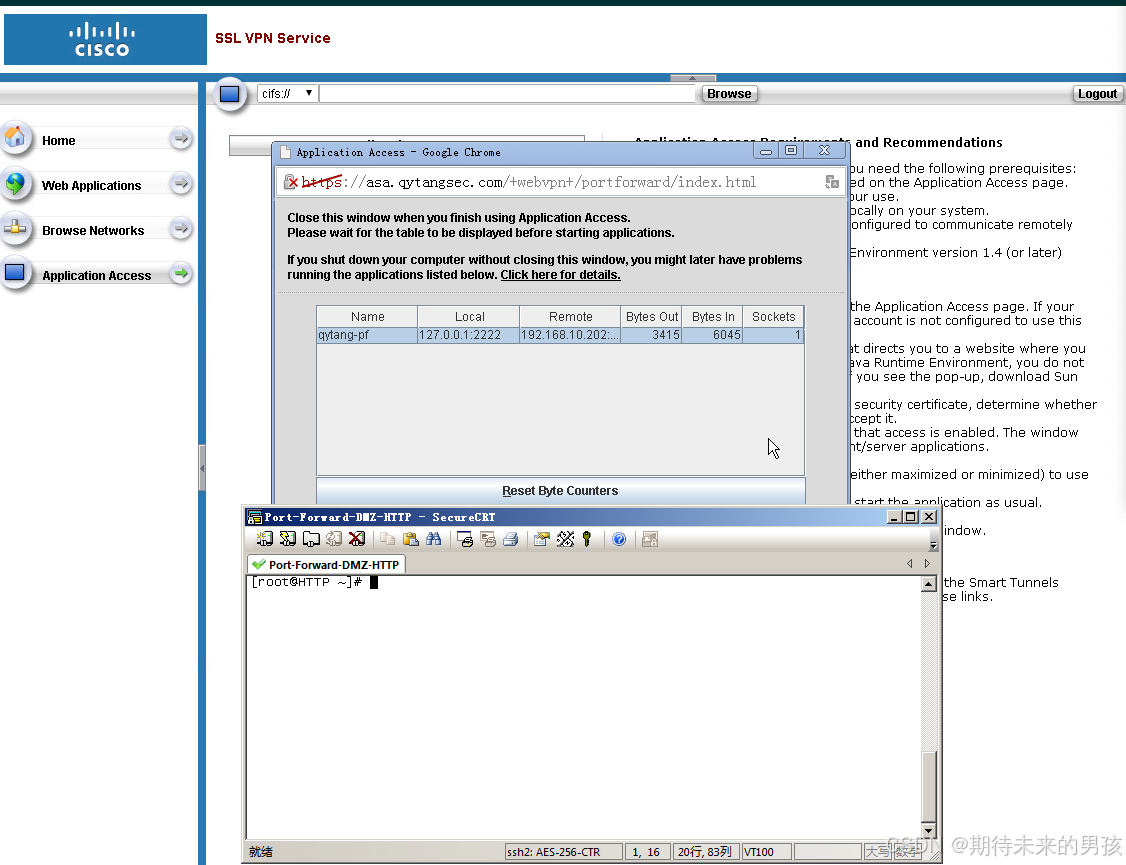

瘦客户端

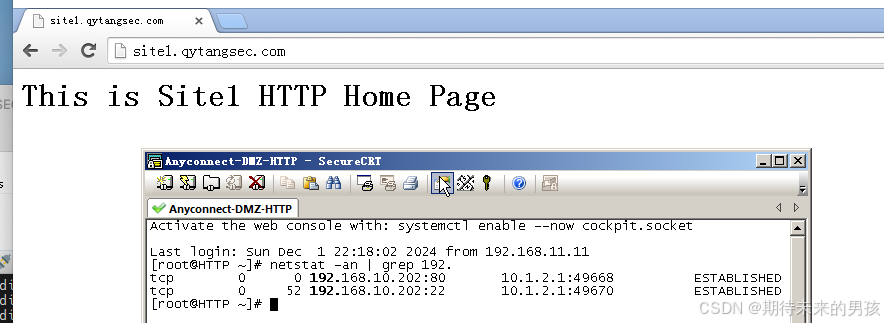

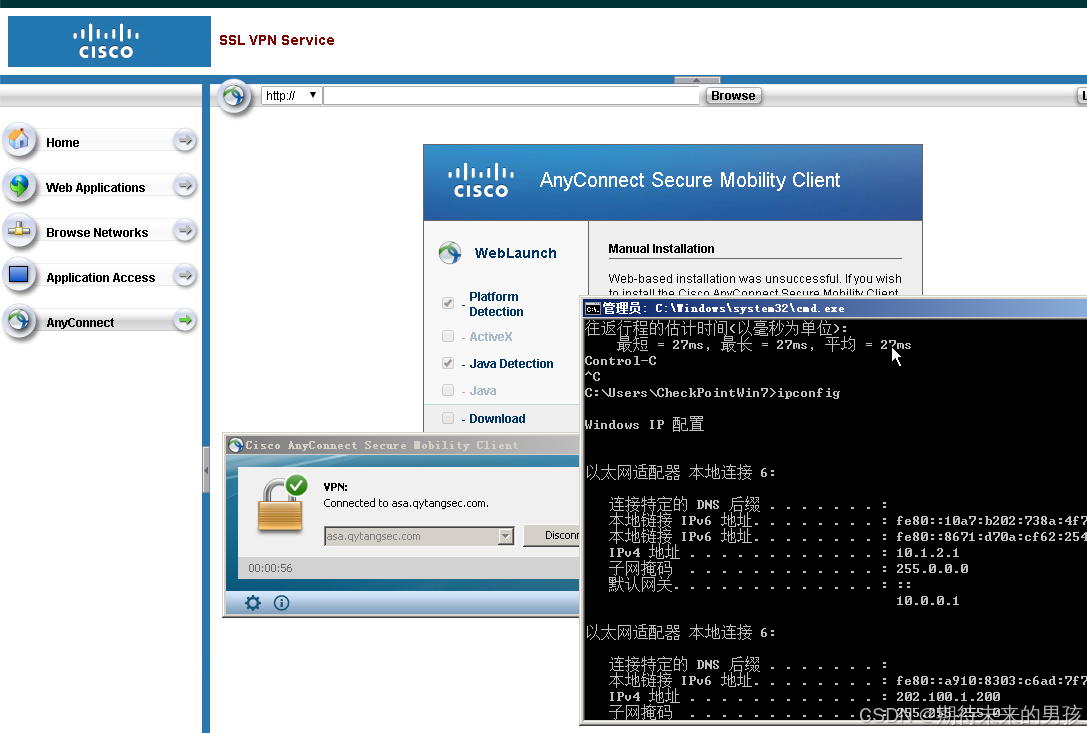

厚客户端
