flutter 曲线学习 使用第三方插件实现左右滑动

flutter 曲线的使用 实现左右滑动

TemperatureChartPage()

TemperatureChartPage2() – 不太完善

方法 ChartDrawPage

import 'package:doluyo/dly_package/widget/dly_widget.dart';
import 'package:fl_chart/fl_chart.dart';
import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_charts/charts.dart';

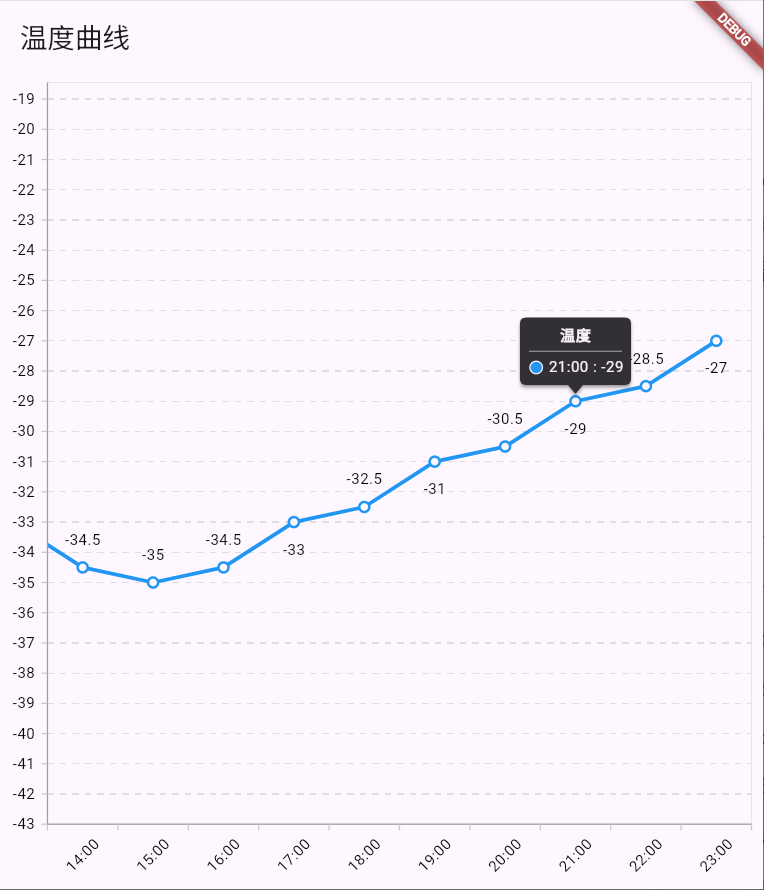

显示图表使用 syncfusion_flutter_charts 插件实现
class TemperatureData {
  TemperatureData(this.time, this.temperature);

  final String time;
  final double temperature;
}

class TempChart extends StatelessWidget {
  const TempChart({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: ChartDrawPage('℃', '温度'),
    );
  }
}

//其他方案
class TemperatureChartPage extends StatefulWidget {
  @override
  _TemperatureChartPageState createState() => _TemperatureChartPageState();
}

class _TemperatureChartPageState extends State<TemperatureChartPage> {
  final List<TemperatureData> _temperatureData = [
    TemperatureData('00:00', -20.5),
    TemperatureData('01:00', -21.0),
    TemperatureData('02:00', -22.5),
    TemperatureData('03:00', -23.0),
    TemperatureData('04:00', -24.5),
    TemperatureData('05:00', -25.0),
    TemperatureData('06:00', -26.5),
    TemperatureData('07:00', -27.0),
    TemperatureData('08:00', -28.5),
    TemperatureData('09:00', -29.0),
    TemperatureData('10:00', -30.5),
    TemperatureData('11:00', -31.0),
    TemperatureData('12:00', -32.5),
    TemperatureData('13:00', -33.0),
    TemperatureData('14:00', -34.5),
    TemperatureData('15:00', -35.0),
    TemperatureData('16:00', -34.5),
    TemperatureData('17:00', -33.0),
    TemperatureData('18:00', -32.5),
    TemperatureData('19:00', -31.0),
    TemperatureData('20:00', -30.5),
    TemperatureData('21:00', -29.0),
    TemperatureData('22:00', -28.5),
    TemperatureData('23:00', -27.0),
  ];

  double _visibleMinimum = 0;
  double _visibleMaximum = 10;

  @override
  void initState() {
    super.initState();
    // 设置初始可见范围为最后10个数据点
    _visibleMinimum = _temperatureData.length - 10;
    _visibleMaximum = _temperatureData.length.toDouble() - 1;
  }

  //实现左右滑动显示数据
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text('温度曲线'),
      ),
      body: Center(
        child: GestureDetector(
          onHorizontalDragUpdate: (details) {
            double delta = details.delta.dx;
            setState(() {
              _visibleMinimum = (_visibleMinimum - delta / 10)
                  .clamp(0, _temperatureData.length - 10);
              _visibleMaximum = _visibleMinimum + 9;
            });
          },
          child: Container(
            height: 200,
            decoration: BoxDecoration(
              color: Colors.white,
              borderRadius: BorderRadius.circular(20),
              boxShadow: [
                BoxShadow(
                  color: Colors.grey.withOpacity(0.5),
                  spreadRadius: 5,
                  blurRadius: 7,
                  offset: const Offset(0, 3),
                ),
              ],
            ),
            child: SfCartesianChart(
              //backgroundColor: Colors.white,
              // zoomPanBehavior: ZoomPanBehavior(///图表不能滑动
              //   enablePanning: true,
              // ),
              primaryXAxis: CategoryAxis(
                labelRotation: -45,
                minimum: _visibleMinimum,
                maximum: _visibleMaximum,
                labelStyle: TextStyle(
                  color: Colors.black,
                  fontSize: 12,
                ),
                axisLine: AxisLine(
                  color: Colors.grey,
                  width: 1,
                ),
                majorGridLines: MajorGridLines(
                  // color: Colors.grey.withOpacity(0.3),
                  width: 0,
                  //dashArray: [5, 5], // 设置虚线
                ),
              ),
              primaryYAxis: NumericAxis(
                title: AxisTitle(
                  text: '温度 (°C)',
                  alignment: ChartAlignment.center,
                ),
                labelStyle: TextStyle(
                  color: Colors.black,
                  fontSize: 12,
                ),
                axisLine: AxisLine(
                  color: Colors.grey,
                  width: 1,
                ),
                majorGridLines: MajorGridLines(
                  color: Colors.grey.withOpacity(0.3),
                  width: 1,
                  dashArray: [5, 5], // 设置虚线
                ),
              ),
              tooltipBehavior: TooltipBehavior(enable: true),

              series: <CartesianSeries>[
                LineSeries<TemperatureData, String>(
                  dataSource: _temperatureData,
                  xValueMapper: (TemperatureData data, _) => data.time,
                  yValueMapper: (TemperatureData data, _) => data.temperature,
                  dataLabelSettings: DataLabelSettings(isVisible: true),
                  name: '温度',
                  markerSettings: MarkerSettings(isVisible: true),
                  color: Colors.blue,
                  width: 3,
                  //dashArray: [5, 5], // 设置虚线
                ),
              ],
            ),
          ).withPadding(EdgeInsets.all(20)),
        ),
      ),
    );
  }

  ///不能滑动查看数据
// @override
// Widget build(BuildContext context) {
//   return Scaffold(
//     appBar: AppBar(
//       title: const Text('温度曲线'),
//     ),
//     body: Center(
//       child: Container(
//         height: 400,
//         child: SfCartesianChart(
//           zoomPanBehavior: ZoomPanBehavior(
//             enablePanning: true,
//           ),
//           primaryXAxis: CategoryAxis(
//             labelRotation: -45,
//           ),
//           primaryYAxis: NumericAxis(
//             title: AxisTitle(text: '温度 (°C)'),
//           ),
//           tooltipBehavior: TooltipBehavior(enable: true),//点击查看详情
//           series: <CartesianSeries>[
//             LineSeries<TemperatureData, String>(
//               dataSource: _temperatureData,
//               xValueMapper: (TemperatureData data, _) => data.time,
//               yValueMapper: (TemperatureData data, _) => data.temperature,
//               dataLabelSettings: DataLabelSettings(isVisible: true),//显示点参数
//               name: '温度',
//               markerSettings: MarkerSettings(isVisible: true),//显示圆点
//             ),
//           ],
//         ),
//       ),
//     ),
//   );
// }
}

///不理想
class TemperatureChartPage2 extends StatefulWidget {
  @override
  _TemperatureChartPageState2 createState() => _TemperatureChartPageState2();
}

class _TemperatureChartPageState2 extends State<TemperatureChartPage2> {
  final List<TemperatureData> _temperatureData = [
    TemperatureData('00:00', -20.5),
    TemperatureData('01:00', -21.0),
    TemperatureData('02:00', -22.5),
    TemperatureData('03:00', -23.0),
    TemperatureData('04:00', -24.5),
    TemperatureData('05:00', -25.0),
    TemperatureData('06:00', -26.5),
    TemperatureData('07:00', -27.0),
    TemperatureData('08:00', -28.5),
    TemperatureData('09:00', -29.0),
    TemperatureData('10:00', -30.5),
    TemperatureData('11:00', -31.0),
    TemperatureData('12:00', -32.5),
    TemperatureData('13:00', -33.0),
    TemperatureData('14:00', -34.5),
    TemperatureData('15:00', -35.0),
    TemperatureData('16:00', -34.5),
    TemperatureData('17:00', -33.0),
    TemperatureData('18:00', -32.5),
    TemperatureData('19:00', -31.0),
    TemperatureData('20:00', -30.5),
    TemperatureData('21:00', -29.0),
    TemperatureData('22:00', -28.5),
    TemperatureData('23:00', -27.0),
  ];

  double _visibleMinimum = 0;
  double _visibleMaximum = 10;

  @override
  void initState() {
    super.initState();
    _visibleMinimum = _temperatureData.length - 10;
    _visibleMaximum = _temperatureData.length.toDouble() - 1;
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text('温度曲线'),
      ),
      body: Center(
        child: GestureDetector(
          onHorizontalDragUpdate: (details) {
            double delta = details.delta.dx;
            setState(() {
              _visibleMinimum = (_visibleMinimum - delta / 10)
                  .clamp(0, _temperatureData.length - 10);
              _visibleMaximum = _visibleMinimum + 9;
            });
          },
          child: Container(
            height: 400,
            decoration: BoxDecoration(
              color: Colors.white,
              borderRadius: BorderRadius.circular(10),
              boxShadow: [
                BoxShadow(
                  color: Colors.grey.withOpacity(0.5),
                  spreadRadius: 5,
                  blurRadius: 7,
                  offset: const Offset(0, 3),
                ),
              ],
            ),
            child: LineChart(
              LineChartData(
                minX: _visibleMinimum,
                maxX: _visibleMaximum,
                minY: -40,
                maxY: 0,
                lineTouchData: LineTouchData(enabled: true),
                gridData: FlGridData(
                  show: true,
                  drawHorizontalLine: true,
                  drawVerticalLine: true,
                  getDrawingHorizontalLine: (value) {
                    return FlLine(
                      color: Colors.grey.withOpacity(0.3),
                      strokeWidth: 1,
                      dashArray: [5, 5],
                    );
                  },
                  getDrawingVerticalLine: (value) {
                    return FlLine(
                      color: Colors.grey.withOpacity(0.3),
                      strokeWidth: 1,
                      dashArray: [5, 5],
                    );
                  },
                ),
                borderData: FlBorderData(
                  show: true,
                  border: Border.all(
                    color: Colors.grey,
                    width: 1,
                  ),
                ),
                titlesData: FlTitlesData(
                  show: true,
                  rightTitles: const AxisTitles(
                    sideTitles: SideTitles(showTitles: false),
                  ),
                  topTitles: const AxisTitles(
                    sideTitles: SideTitles(showTitles: false),
                  ),
                  // bottomTitles: SideTitles(
                  //   showTitles: true,
                  //   getTitles: (value) {
                  //     int index = value.toInt();
                  //     if (index >= 0 && index < _temperatureData.length) {
                  //       return _temperatureData[index].time;
                  //     }
                  //     return '';
                  //   },
                  //   getTextStyles: (value) => TextStyle(
                  //     color: Colors.black,
                  //     fontSize: 12,
                  //   ),
                  //   margin: 10,
                  // ),
                  bottomTitles: AxisTitles(
                    sideTitles: SideTitles(
                      showTitles: true,
                      getTitlesWidget: (value, meta) =>
                          bottomTitleWidgets(value, meta),
                      reservedSize: 36,
                      interval: 1,
                    ),
                    drawBelowEverything: true,
                  ),
                ),
                lineBarsData: [
                  LineChartBarData(
                    spots: _temperatureData
                        .asMap()
                        .entries
                        .map((entry) => FlSpot(
                              entry.key.toDouble(),
                              entry.value.temperature,
                            ))
                        .toList(),
                    isCurved: true,
                    barWidth: 3,
                    color: Colors.blue,
                    dotData: FlDotData(
                      show: true,
                      getDotPainter: (spot, percent, barData, index) {
                        return FlDotCirclePainter(
                          radius: 4,
                          color: Colors.blue,
                          strokeWidth: 2,
                          strokeColor: Colors.white,
                        );
                      },
                    ),
                    belowBarData: BarAreaData(
                      show: true,
                      color: Colors.blue.withOpacity(0.3),
                    ),
                  ),
                ],
              ),
            ),
          ).withPadding(EdgeInsets.all(10)),
        ),
      ),
    );
  }

  Widget bottomTitleWidgets(double value, TitleMeta meta) {
    if (value % 1 != 0) {
      return Container();
    }
    final style = TextStyle(
      //color: AppColors.contentColorBlack,
      fontWeight: FontWeight.bold,
      //fontSize: min(18, 18 * chartWidth / 300),
    );
    return SideTitleWidget(
      axisSide: meta.axisSide,
      space: 16,
      child: Text(meta.formattedValue, style: style),
    );
  }
}

///没效果
class TemperatureChartPage3 extends StatefulWidget {
  @override
  _TemperatureChartPageState3 createState() => _TemperatureChartPageState3();
}

class _TemperatureChartPageState3 extends State<TemperatureChartPage3> {
  final List<TemperatureData> _temperatureData = [
    TemperatureData('00:00', -20.5),
    TemperatureData('01:00', -21.0),
    TemperatureData('02:00', -22.5),
    TemperatureData('03:00', -23.0),
    TemperatureData('04:00', -24.5),
    TemperatureData('05:00', -25.0),
    TemperatureData('06:00', -26.5),
    TemperatureData('07:00', -27.0),
    TemperatureData('08:00', -28.5),
    TemperatureData('09:00', -29.0),
    TemperatureData('10:00', -30.5),
    TemperatureData('11:00', -31.0),
    TemperatureData('12:00', -32.5),
    TemperatureData('13:00', -33.0),
    TemperatureData('14:00', -34.5),
    TemperatureData('15:00', -35.0),
    TemperatureData('16:00', -34.5),
    TemperatureData('17:00', -33.0),
    TemperatureData('18:00', -32.5),
    TemperatureData('19:00', -31.0),
    TemperatureData('20:00', -30.5),
    TemperatureData('21:00', -29.0),
    TemperatureData('22:00', -28.5),
    TemperatureData('23:00', -27.0),
  ];

  double _visibleMinimum = 0;
  double _visibleMaximum = 10;

  @override
  void initState() {
    super.initState();
    _visibleMinimum = _temperatureData.length - 10;
    _visibleMaximum = _temperatureData.length.toDouble() - 1;
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text('温度曲线'),
      ),
      body: Center(
        child: GestureDetector(
          onHorizontalDragUpdate: (details) {
            double delta = details.delta.dx;
            setState(() {
              _visibleMinimum = (_visibleMinimum - delta / 10)
                  .clamp(0, _temperatureData.length - 10);
              _visibleMaximum = _visibleMinimum + 9;
            });
          },
          child: Container(
            height: 400,
            decoration: BoxDecoration(
              color: Colors.white,
              borderRadius: BorderRadius.circular(10),
              boxShadow: [
                BoxShadow(
                  color: Colors.grey.withOpacity(0.5),
                  spreadRadius: 5,
                  blurRadius: 7,
                  offset: const Offset(0, 3),
                ),
              ],
            ),
            child: LineChart(
              LineChartData(
                minX: _visibleMinimum,
                maxX: _visibleMaximum,
                minY: -40,
                maxY: 0,
                lineTouchData: LineTouchData(enabled: true),
                gridData: FlGridData(
                  show: true,
                  drawHorizontalLine: true,
                  drawVerticalLine: true,
                  getDrawingHorizontalLine: (value) {
                    return FlLine(
                      color: Colors.grey.withOpacity(0.3),
                      strokeWidth: 1,
                      dashArray: [5, 5],
                    );
                  },
                  getDrawingVerticalLine: (value) {
                    return FlLine(
                      color: Colors.grey.withOpacity(0.3),
                      strokeWidth: 1,
                      dashArray: [5, 5],
                    );
                  },
                ),
                borderData: FlBorderData(
                  show: true,
                  border: Border.all(
                    color: Colors.grey,
                    width: 1,
                  ),
                ),
                titlesData: FlTitlesData(
                  show: true,
                ),
                lineBarsData: [
                  LineChartBarData(
                    spots: _temperatureData
                        .asMap()
                        .entries
                        .map((entry) => FlSpot(
                              entry.key.toDouble(),
                              entry.value.temperature,
                            ))
                        .toList(),
                    isCurved: true,
                    barWidth: 3,
                    color: Colors.blue,
                    dotData: FlDotData(
                      show: true,
                      getDotPainter: (spot, percent, barData, index) {
                        return FlDotCirclePainter(
                          radius: 4,
                          color: Colors.blue,
                          strokeWidth: 2,
                          strokeColor: Colors.white,
                        );
                      },
                    ),
                    belowBarData: BarAreaData(
                      show: true,
                      color: Colors.blue.withOpacity(0.3),
                    ),
                  ),
                ],
              ),
            ),
          ),
        ),
      ),
    );
  }
}

///没效果
class TemperatureChartPage4 extends StatefulWidget {
  @override
  _TemperatureChartPageState4 createState() => _TemperatureChartPageState4();
}

class _TemperatureChartPageState4 extends State<TemperatureChartPage4> {
  final List<TemperatureData> _temperatureData = [
    TemperatureData('00:00', -20.5),
    TemperatureData('01:00', -21.0),
    TemperatureData('02:00', -22.5),
    TemperatureData('03:00', -23.0),
    TemperatureData('04:00', -24.5),
    TemperatureData('05:00', -25.0),
    TemperatureData('06:00', -26.5),
    TemperatureData('07:00', -27.0),
    TemperatureData('08:00', -28.5),
    TemperatureData('09:00', -29.0),
    TemperatureData('10:00', -30.5),
    TemperatureData('11:00', -31.0),
    TemperatureData('12:00', -32.5),
    TemperatureData('13:00', -33.0),
    TemperatureData('14:00', -34.5),
    TemperatureData('15:00', -35.0),
    TemperatureData('16:00', -34.5),
    TemperatureData('17:00', -33.0),
    TemperatureData('18:00', -32.5),
    TemperatureData('19:00', -31.0),
    TemperatureData('20:00', -30.5),
    TemperatureData('21:00', -29.0),
    TemperatureData('22:00', -28.5),
    TemperatureData('23:00', -27.0),
  ];

  double _visibleMinimum = 0;
  double _visibleMaximum = 10;

  @override
  void initState() {
    super.initState();
    _visibleMinimum = _temperatureData.length - 10;
    _visibleMaximum = _temperatureData.length.toDouble() - 1;
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text('温度曲线'),
      ),
      body: Center(
        child: GestureDetector(
          onHorizontalDragUpdate: (details) {
            // 调整滑动的灵敏度，避免遮挡Y轴
            double delta = details.delta.dx;
            setState(() {
              _visibleMinimum = (_visibleMinimum - delta / 20)
                  .clamp(0, _temperatureData.length - 10);
              _visibleMaximum = _visibleMinimum + 9;
            });
          },
          child: Container(
            height: 400,
            decoration: BoxDecoration(
              color: Colors.white,
              borderRadius: BorderRadius.circular(10),
              boxShadow: [
                BoxShadow(
                  color: Colors.grey.withOpacity(0.5),
                  spreadRadius: 5,
                  blurRadius: 7,
                  offset: const Offset(0, 3),
                ),
              ],
            ),
            child: LineChart(
              LineChartData(
                minX: _visibleMinimum,
                maxX: _visibleMaximum,
                minY: -40,
                maxY: 0,
                lineTouchData: LineTouchData(enabled: false),
                gridData: FlGridData(
                  show: true,
                  drawHorizontalLine: true,
                  drawVerticalLine: true,
                  getDrawingHorizontalLine: (value) {
                    return FlLine(
                      color: Colors.grey.withOpacity(0.3),
                      strokeWidth: 1,
                      dashArray: [5, 5],
                    );
                  },
                  getDrawingVerticalLine: (value) {
                    return FlLine(
                      color: Colors.grey.withOpacity(0.3),
                      strokeWidth: 1,
                      dashArray: [5, 5],
                    );
                  },
                ),
                borderData: FlBorderData(
                  show: true,
                  border: Border.all(
                    color: Colors.grey,
                    width: 1,
                  ),
                ),
                titlesData: FlTitlesData(
                  show: true,
                  topTitles: const AxisTitles(
                    sideTitles: SideTitles(showTitles: false),
                  ),
                  rightTitles: const AxisTitles(
                    sideTitles: SideTitles(showTitles: false),
                  ),
                  leftTitles: AxisTitles(
                    sideTitles: SideTitles(
                      showTitles: true,
                      reservedSize: 50, // 为Y轴标题预留空间
                      getTitlesWidget: (value, meta) {
                        return SideTitleWidget(
                          axisSide: meta.axisSide,
                          child: Text('${value.toInt()}°C'),
                        );
                      },
                    ),
                  ),
                  bottomTitles: AxisTitles(
                    sideTitles: SideTitles(
                      showTitles: true,
                      reservedSize: 30,
                      interval: 1,
                      getTitlesWidget: bottomTitleWidgets,
                    ),
                  ),
                ),
                lineBarsData: [
                  LineChartBarData(
                    spots: _temperatureData
                        .asMap()
                        .entries
                        .map((entry) => FlSpot(
                              entry.key.toDouble(),
                              entry.value.temperature,
                            ))
                        .toList(),
                    isCurved: true,
                    //是否曲线
                    barWidth: 3,
                    color: Colors.blue,
                    dotData: FlDotData(
                      show: true, //显示点
                      getDotPainter: (spot, percent, barData, index) {
                        //圆点装饰
                        return FlDotCirclePainter(
                          radius: 4,
                          color: Colors.blue,
                          strokeWidth: 2,
                          strokeColor: Colors.white,
                        );
                      },
                    ),
                    belowBarData: BarAreaData(
                      //阴影
                      show: false,
                      //color: Colors.blue.withOpacity(0.3),
                    ),
                  ),
                ],
              ),
            ).withPadding(
              EdgeInsets.only(left: 10, top: 10, right: 10),
            ),
          ).withPadding(
            // 添加padding，确保Y轴不被遮挡
            EdgeInsets.all(20),
          ),
        ),
      ),
    );
  }

  Widget bottomTitleWidgets(double value, TitleMeta meta) {
    const style = TextStyle(
      fontWeight: FontWeight.bold,
      fontSize: 13,
      //color: AppColors.contentColorBlack,
    );
    Widget text;
    text = Text('${_temperatureData[value.toInt()].time}', style: style);

    return SideTitleWidget(
      axisSide: meta.axisSide,
      child: text,
    );
  }
}

//其他方案
class ChartDrawPage extends StatefulWidget {
  final String unit;
  final String sTitle;
  final List<TemperatureData>? list;

  const ChartDrawPage(
    this.unit,
    this.sTitle, {
    this.list = null,
    Key? key,
  }) : super(key: key);

  @override
  _ChartDrawPageState createState() => _ChartDrawPageState();
}

class _ChartDrawPageState extends State<ChartDrawPage> {
  late List<TemperatureData> _temperatureData = [
    TemperatureData('00:00', -20.5),
    TemperatureData('01:00', -21.0),
    TemperatureData('02:00', -22.5),
    TemperatureData('03:00', -23.0),
    TemperatureData('04:00', -24.5),
    TemperatureData('05:00', -25.0),
    TemperatureData('06:00', -26.5),
    TemperatureData('07:00', -27.0),
    TemperatureData('08:00', -28.5),
    TemperatureData('09:00', -29.0),
    TemperatureData('10:00', -30.5),
    TemperatureData('11:00', -31.0),
    TemperatureData('12:00', -32.5),
    TemperatureData('13:00', -33.0),
    TemperatureData('14:00', -34.5),
    TemperatureData('15:00', -35.0),
    TemperatureData('16:00', -34.5),
    TemperatureData('17:00', -33.0),
    TemperatureData('18:00', -32.5),
    TemperatureData('19:00', -31.0),
    TemperatureData('20:00', -30.5),
    TemperatureData('21:00', -29.0),
    TemperatureData('22:00', -28.5),
    TemperatureData('23:00', -27.0),
  ];

  double _visibleMinimum = 0;
  double _visibleMaximum = 10;

  @override
  void initState() {
    super.initState();
    if (widget.list != null && widget.list!.isNotEmpty) {
      _temperatureData = widget.list!;
    }
    // 设置初始可见范围为最后10个数据点
    _visibleMinimum = _temperatureData.length - 10;
    _visibleMaximum = _temperatureData.length.toDouble() - 1;
  }

  //实现左右滑动显示数据
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text('温度曲线'),
      ),
      body: Center(
        child: (_temperatureData.length > 10)
            ? _build_chart2(context)
            : _build_chart1(context),
      ),
    );
  }

  ///滑动查看数据
  Widget _build_chart2(BuildContext context) {
    return GestureDetector(
      onHorizontalDragUpdate: (details) {
        double delta = details.delta.dx;
        setState(() {
          _visibleMinimum = (_visibleMinimum - delta / 10)
              .clamp(0, _temperatureData.length - 10);
          _visibleMaximum = _visibleMinimum + 9;
        });
      },
      child: SfCartesianChart(
        //backgroundColor: Colors.white,
        // zoomPanBehavior: ZoomPanBehavior(///图表不能滑动
        //   enablePanning: true,
        // ),
        primaryXAxis: CategoryAxis(
          labelRotation: -45,
          minimum: _visibleMinimum,
          maximum: _visibleMaximum,
          labelStyle: TextStyle(
            color: Colors.black,
            fontSize: 12,
          ),
          axisLine: AxisLine(
            color: Colors.grey,
            width: 1,
          ),
          majorGridLines: MajorGridLines(
            // color: Colors.grey.withOpacity(0.3),
            width: 0,
            //dashArray: [5, 5], // 设置虚线
          ),
        ),
        primaryYAxis: NumericAxis(
          // title: AxisTitle(//标题说明
          //   text: '${widget.sTitle}(${widget.unit})',
          //   alignment: ChartAlignment.center,
          // ),
          labelStyle: TextStyle(
            color: Colors.black,
            fontSize: 12,
          ),
          axisLine: AxisLine(
            color: Colors.grey,
            width: 1,
          ),
          majorGridLines: MajorGridLines(
            color: Colors.grey.withOpacity(0.3),
            width: 1,
            dashArray: [5, 5], // 设置虚线
          ),
        ),
        tooltipBehavior: TooltipBehavior(enable: true),

        series: <CartesianSeries>[
          LineSeries<TemperatureData, String>(
            dataSource: _temperatureData,
            xValueMapper: (TemperatureData data, _) => data.time,
            yValueMapper: (TemperatureData data, _) => data.temperature,
            dataLabelSettings: DataLabelSettings(isVisible: true),
            name: '${widget.sTitle}',
            markerSettings: MarkerSettings(isVisible: true),
            color: Colors.blue,
            width: 3,
            //dashArray: [5, 5], // 设置虚线
          ),
        ],
      ),
    );
  }

  ///不能滑动查看数据
  Widget _build_chart1(BuildContext context) {
    return SfCartesianChart(
      zoomPanBehavior: ZoomPanBehavior(
        enablePanning: true,
      ),
      primaryXAxis: CategoryAxis(
        labelRotation: -45,
      ),
      // primaryYAxis: NumericAxis(
      //   title: AxisTitle(text: '温度 (°C)'),
      // ),
      tooltipBehavior: TooltipBehavior(enable: true),
      //点击查看详情
      series: <CartesianSeries>[
        LineSeries<TemperatureData, String>(
          dataSource: _temperatureData,
          xValueMapper: (TemperatureData data, _) => data.time,
          yValueMapper: (TemperatureData data, _) => data.temperature,
          dataLabelSettings: DataLabelSettings(isVisible: true),
          //显示点参数
          name: '${widget.sTitle}',
          markerSettings: MarkerSettings(isVisible: true),
          color: Colors.blue,
          width: 3,
        ),
      ],
    );
  }
}

插件

  #图表使用--曲线 https://pub.dev/packages/fl_chart/versions
  fl_chart: ^0.69.0
  #图表--曲线 https://pub.dev/packages/syncfusion_flutter_charts
  syncfusion_flutter_charts: ^27.2.4
