K8S学习之基础七十五：istio实现灰度发布

istio实现灰度发布

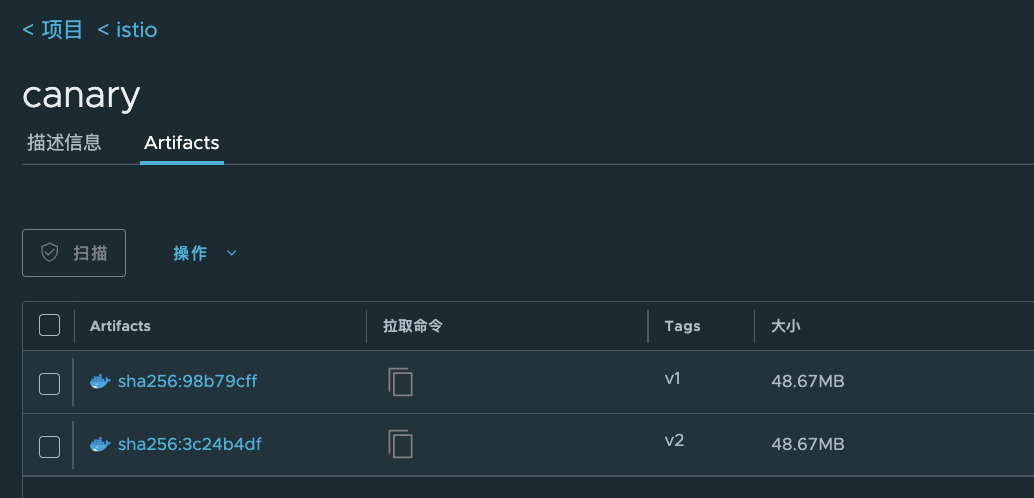

上传镜像到harbor

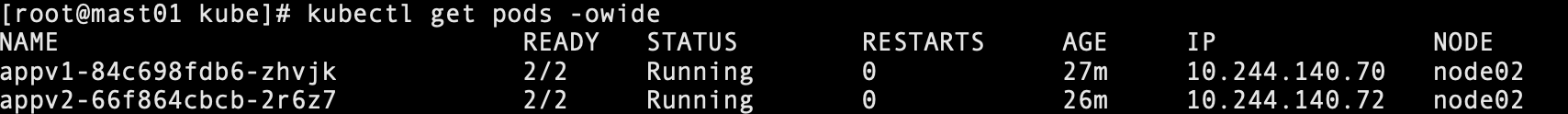

创建两个版本的pod

vi deployment-v1.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: appv1
  labels:
    app: v1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: v1
      apply: canary
  template:
    metadata:
      labels:
        app: v1
        apply: canary
    spec:
      containers:
      - name: nginx
        image: 172.16.80.140/istio/canary:v1
        ports:
        - containerPort: 80

vi deployment-v2.yaml
kind: Deployment
metadata:
  name: appv2
  labels:
    app: v2
spec:
  replicas: 1
  selector:
    matchLabels:
      app: v2
      apply: canary
  template:
    metadata:
      labels:
        app: v2
        apply: canary
    spec:
      containers:
      - name: nginx
        image: 172.16.80.140/istio/canary:v2
        ports:
        - containerPort: 80

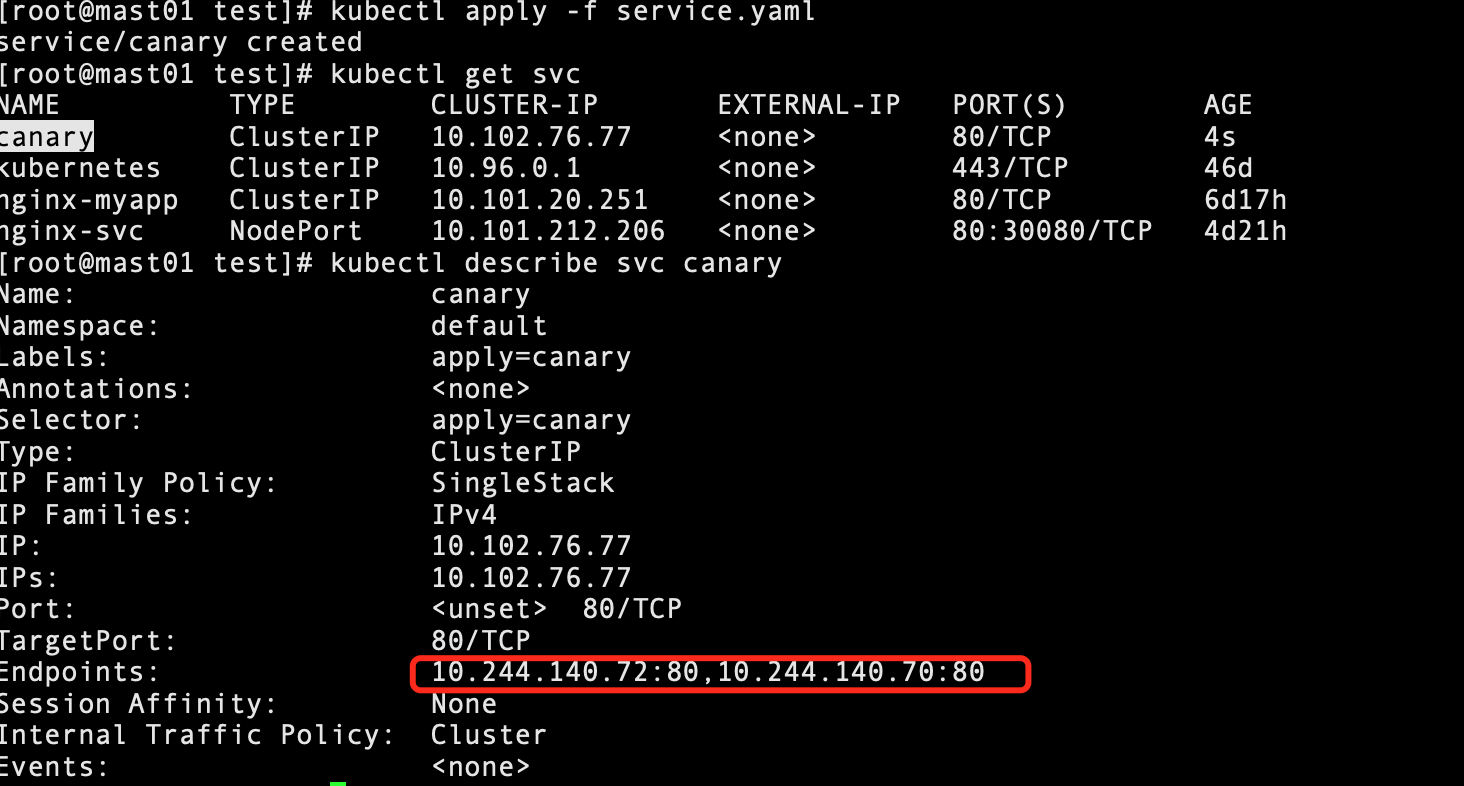

创建service代理

vi service.yaml
apiVersion: v1
kind: Service
metadata:
  name: canary
  labels:
    apply: canary
spec:
  selector:
    apply: canary
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80

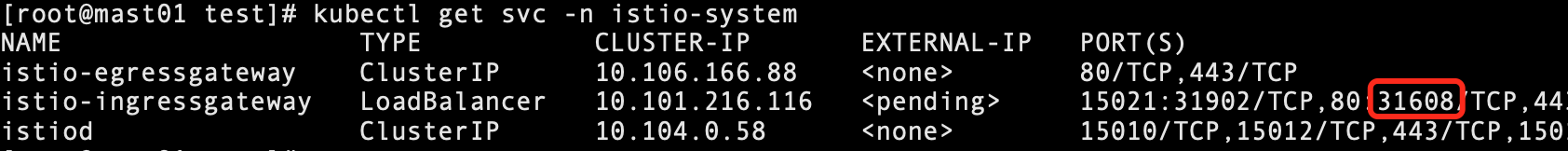

创建网关

vi gateway.yaml
apiVersion: networking.istio.io/v1beta1
kind: Gateway
metadata:
  name: canary-gateway
spec:
  selector:
    istio: ingressgateway
  servers:
  - port:
      number: 80
      name: http
      protocol: HTTP
    hosts:
    - "*"

创建虚拟网关

[root@mast01 test]# more virtual.yaml
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  name: canary
spec:
  hosts:
  - "*"
  gateways:
  - canary-gateway
  http:
  - route:
    - destination:
        host: canary.default.svc.cluster.local
        subset: v1
      weight: 90
    - destination:
        host: canary.default.svc.cluster.local
        subset: v2
      weight: 10

创建目标规则

vi destination.yaml
apiVersion: networking.istio.io/v1beta1
kind: DestinationRule
metadata:
  name: canary
spec:
  host: canary.default.svc.cluster.local
  subsets:
  - name: v1
    labels:
      app: v1
  - name: v2
    labels:
      app: v2
