0. 前言
我们已经学习了 Transformer 的基本原理，接下来，我们将使用 Transformer 模型解决实际问题，从零开始构建机器翻译模型。实现一个 Transformer 模型用于从葡萄牙语到英语的翻译任务。
首先，安装第三方库：
$ pip install tensorflow_datasets
$ pip install -U tensorflow-text
1. 数据处理
(1) 导入所需库和数据集：
import logging
import time
import numpy as np
import matplotlib.pyplot as plt
import tensorflow_text
import tensorflow_datasets as tfds
import tensorflow as tf
logging.getLogger('tensorflow').setLevel(logging.ERROR)
examples, metadata = tfds.load('ted_hrlr_translate/pt_to_en', download=False, with_info=True, as_supervised=True)
(2) 将文本转换为词元 (token) ID 序列，作为嵌入的索引：
model_name = 'ted_hrlr_translate_pt_en_converter'
tf.keras.utils.get_file(f'{model_name}.zip',
f'https://storage.googleapis.com/download.tensorflow.org/models/{model_name}.zip',
cache_dir='.', cache_subdir='', extract=True
)
tokenizers = tf.saved_model.load(model_name)

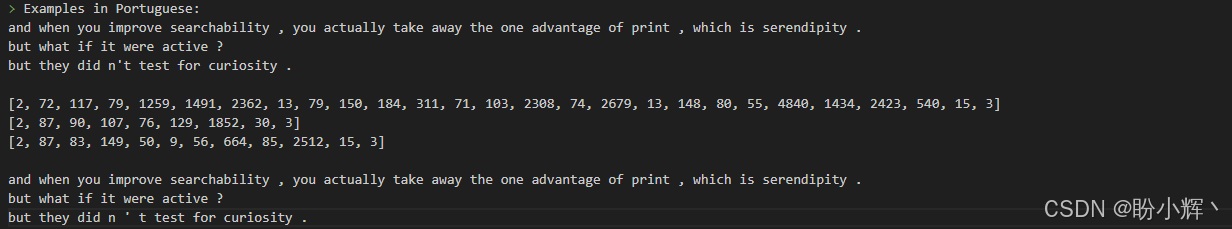

查看词元化后的 ID 和单词：
for pt_examples, en_examples in train_examples.batch(3).take(1):
print('> Examples in Portuguese:')
for en in en_examples.numpy():
print(en.decode('utf-8'))
encoded = tokenizers.en.tokenize(en_examples)
for row in encoded.to_list():
print(row)
round_trip = tokenizers.en.detokenize(encoded)
for line in round_trip.numpy():
print(line.decode('utf-8'))
(3) 创建输入。 首先，定义函数 filter_max_tokens() 丢弃超出 MAX_TOKENS 的样本，然后，定义函数 tokenize_pairs() 对数据进行词元化，最后，创建批数据：
MAX_TOKENS=128
def filter_max_tokens(pt, en):
num_tokens = tf.maximum(tf.shape(pt)[1],tf.shape(en)[1])
return num_tokens < MAX_TOKENS
def tokenize_pairs(pt, en):
pt = tokenizers.pt.tokenize(pt)
# Convert from ragged to dense, padding with zeros.
pt = pt.to_tensor()
en = tokenizers.en.tokenize(en)
# Convert from ragged to dense, padding with zeros.
en = en.to_tensor()
return pt, en
BUFFER_SIZE = 20000
BATCH_SIZE = 64
def make_batches(ds):
return (
ds.cache().shuffle(BUFFER_SIZE).batch(BATCH_SIZE)
.map(tokenize_pairs, num_parallel_calls=tf.data.AUTOTUNE)
.filter(filter_max_tokens).prefetch(tf.data.AUTOTUNE))
train_batches = make_batches(train_examples)
val_batches = make_batches(val_examples)
(4) 添加位置编码， 使得 token 在 d 维嵌入空间中，基于其含义的相似性和在句子中的位置彼此更接近：
def get_angles(pos, i, d_model):
angle_rates = 1 / np.power(10000, (2 * (i//2)) / np.float32(d_model))
return pos * angle_rates
def positional_encoding(position, d_model):
angle_rads = get_angles(np.arange(position)[:, np.newaxis],
np.arange(d_model)[np.newaxis, :],
d_model)
# apply sin to even indices in the array; 2i
angle_rads[:, 0::2] = np.sin(angle_rads[:, 0::2])
# apply cos to odd indices in the array; 2i+1
angle_rads[:, 1::2] = np.cos(angle_rads[:, 1::2])
pos_encoding = angle_rads[np.newaxis, ...]
return tf.cast(pos_encoding, dtype=tf.float32)
(5) 接下来，实现掩码处理。 前瞻掩码用于掩码序列中的未来词元，掩码指示哪些项不应使用。例如，为了预测第三个词元，只会使用第一个和第二个词元；为了预测第四个词元，只会使用第一个、第二个和第三个词元，以此类推：
def create_padding_mask(seq):
seq = tf.cast(tf.math.equal(seq, 0), tf.float32)
# add extra dimensions to add the padding
# to the attention logits.
return seq[:, tf.newaxis, tf.newaxis, :] # (batch_size, 1, 1, seq_len)
def create_look_ahead_mask(size):
mask = 1 - tf.linalg.band_part(tf.ones((size, size)), -1, 0)
return mask # (seq_len, seq_len)
2. 模型构建与训练
(1) 定义注意力函数：
def scaled_dot_product_attention(q, k, v, mask):
matmul_qk = tf.matmul(q, k, transpose_b=True) # (..., seq_len_q, seq_len_k)
# scale matmul_qk
dk = tf.cast(tf.shape(k)[-1], tf.float32)
scaled_attention_logits = matmul_qk / tf.math.sqrt(dk)
# add the mask to the scaled tensor.
if mask is not None:
scaled_attention_logits += (mask * -1e9)
# softmax is normalized on the last axis (seq_len_k) so that the scores add up to 1.
attention_weights = tf.nn.softmax(scaled_attention_logits, axis=-1) # (..., seq_len_q, seq_len_k)
output = tf.matmul(attention_weights, v)
# (..., seq_len_q, depth_v)
return output, attention_weights
(2) 定义注意力之后，需要实现多头注意力机制。 包括三个部分：线性层、缩放点积注意力层 (scaled dot-product attention) 和最终的线性层：
class MultiHeadAttention(tf.keras.layers.Layer):
def __init__(self,*, d_model, num_heads):
super(MultiHeadAttention, self).__init__()
self.num_heads = num_heads
self.d_model = d_model
assert d_model % self.num_heads == 0
self.depth = d_model // self.num_heads
self.wq = tf.keras.layers.Dense(d_model)
self.wk = tf.keras.layers.Dense(d_model)
self.wv = tf.keras.layers.Dense(d_model)
self.dense = tf.keras.layers.Dense(d_model)
def split_heads(self, x, batch_size):
"""
Split the last dimension into (num_heads, depth).
Transpose the result such that the shape is (batch_size, num_heads, seq_len, depth)
"""
x = tf.reshape(x, (batch_size, -1, self.num_heads, self.depth))
return tf.transpose(x, perm=[0, 2, 1, 3])
def call(self, v, k, q, mask):
batch_size = tf.shape(q)[0]
q = self.wq(q) # (batch_size, seq_len, d_model)
k = self.wk(k) # (batch_size, seq_len, d_model)
v = self.wv(v) # (batch_size, seq_len, d_model)
q = self.split_heads(q, batch_size) # (batch_size, num_heads, seq_len_q, depth)
k = self.split_heads(k, batch_size) # (batch_size, num_heads, seq_len_k, depth)
v = self.split_heads(v, batch_size) # (batch_size, num_heads, seq_len_v, depth)
# scaled_attention.shape == (batch_size, num_heads, seq_len_q, depth)
# attention_weights.shape == (batch_size, num_heads, seq_len_q, seq_len_k)
scaled_attention, attention_weights = scaled_dot_product_attention(q, k, v, mask)
scaled_attention = tf.transpose(scaled_attention, perm=[0, 2, 1, 3]) # (batch_size, seq_len_q, num_heads, depth)
concat_attention = tf.reshape(scaled_attention, (batch_size, -1, self.d_model)) # (batch_size, seq_len_q, d_model)
output = self.dense(concat_attention) # (batch_size, seq_len_q, d_model)
return output, attention_weights
(3) 定义逐点前馈网络 (point-wise feedforward network)， 由两个全连接层和一个 ReLU 激活函数组成：
def point_wise_feed_forward_network(d_model, dff):
return tf.keras.Sequential([
tf.keras.layers.Dense(dff, activation='relu'), # (batch_size, seq_len, dff)
tf.keras.layers.Dense(d_model) # (batch_size, seq_len, d_model)
])
(4) 定义编码器和解码器层。
传统的 Transformer 通过 N 个编码器层处理输入句子，而解码器则利用编码器的输出和自身的输入(自注意力机制)来预测下一个单词。每个编码器层由多头注意力(带填充掩码)和逐点前馈网络构成的子层组成。每个子层使用残差连接来解决梯度消失的问题，并包含一个归一化层：
class EncoderLayer(tf.keras.layers.Layer):
def __init__(self,*, d_model, num_heads, dff, rate=0.1):
super(EncoderLayer, self).__init__()
self.mha = MultiHeadAttention(d_model=d_model, num_heads=num_heads)
self.ffn = point_wise_feed_forward_network(d_model, dff)
self.layernorm1 = tf.keras.layers.LayerNormalization(epsilon=1e-6)
self.layernorm2 = tf.keras.layers.LayerNormalization(epsilon=1e-6)
self.dropout1 = tf.keras.layers.Dropout(rate)
self.dropout2 = tf.keras.layers.Dropout(rate)
def call(self, x, training, mask):
attn_output, _ = self.mha(x, x, x, mask) # (batch_size, input_seq_len, d_model)
attn_output = self.dropout1(attn_output, training=training)
out1 = self.layernorm1(x + attn_output) # (batch_size, input_seq_len, d_model)
ffn_output = self.ffn(out1) # (batch_size, input_seq_len, d_model)
ffn_output = self.dropout2(ffn_output, training=training)
out2 = self.layernorm2(out1 + ffn_output) # (batch_size, input_seq_len, d_model)
return out2
每个解码器层由多个子层组成。首先是一个带有前瞻掩码和填充掩码的掩码多头注意力层，然后是一个带有填充掩码的多头注意力层，其中 V V V (值)和 K K K (键)接收编码器的输出作为输入。 Q Q Q (查询)接收来自掩码多头注意力子层的输出，最后是逐点前馈网络：
class DecoderLayer(tf.keras.layers.Layer):
def __init__(self,*, d_model, num_heads, dff, rate=0.1):
super(DecoderLayer, self).__init__()
self.mha1 = MultiHeadAttention(d_model=d_model, num_heads=num_heads)
self.mha2 = MultiHeadAttention(d_model=d_model, num_heads=num_heads)
self.ffn = point_wise_feed_forward_network(d_model, dff)
self.layernorm1 = tf.keras.layers.LayerNormalization(epsilon=1e-6)
self.layernorm2 = tf.keras.layers.LayerNormalization(epsilon=1e-6)
self.layernorm3 = tf.keras.layers.LayerNormalization(epsilon=1e-6)
self.dropout1 = tf.keras.layers.Dropout(rate)
self.dropout2 = tf.keras.layers.Dropout(rate)
self.dropout3 = tf.keras.layers.Dropout(rate)
def call(self, x, enc_output, training, look_ahead_mask, padding_mask):
# enc_output.shape == (batch_size, input_seq_len, d_model)
attn1, attn_weights_block1 = self.mha1(x, x, x, look_ahead_mask) # (batch_size, target_seq_len, d_model)
attn1 = self.dropout1(attn1, training=training)
out1 = self.layernorm1(attn1 + x)
attn2, attn_weights_block2 = self.mha2( enc_output, enc_output, out1, padding_mask) # (batch_size, target_seq_len, d_model)
attn2 = self.dropout2(attn2, training=training)
out2 = self.layernorm2(attn2 + out1) # (batch_size, target_seq_len, d_model)
ffn_output = self.ffn(out2) # (batch_size, target_seq_len, d_model)
ffn_output = self.dropout3(ffn_output, training=training)
out3 = self.layernorm3(ffn_output + out2) # (batch_size, target_seq_len, d_model)
return out3, attn_weights_block1, attn_weights_block2
(5) 定义了编码器层后，可以用它来定义完整的编码器。编码器包括三个阶段：输入嵌入、位置编码和 N 个编码器层：
class Encoder(tf.keras.layers.Layer):
def __init__(self,*, num_layers, d_model, num_heads, dff, input_vocab_size, rate=0.1):
super(Encoder, self).__init__()
self.d_model = d_model
self.num_layers = num_layers
self.embedding = tf.keras.layers.Embedding(input_vocab_size, d_model)
self.pos_encoding = positional_encoding(MAX_TOKENS, self.d_model)
self.enc_layers = [EncoderLayer(d_model=d_model, num_heads=num_heads, dff=dff, rate=rate) for _ in range(num_layers)]
self.dropout = tf.keras.layers.Dropout(rate)
def call(self, x, training, mask):
seq_len = tf.shape(x)[1]
# adding embedding and position encoding.
x = self.embedding(x) # (batch_size, input_seq_len, d_model)
x *= tf.math.sqrt(tf.cast(self.d_model, tf.float32))
x += self.pos_encoding[:, :seq_len, :]
x = self.dropout(x, training=training)
for i in range(self.num_layers):
x = self.enc_layers[i](x, training, mask)
return x # (batch_size, input_seq_len, d_model)
(6) 接下来，定义解码器。解码器由输出嵌入、位置编码和 N 个解码器层组成：
class Decoder(tf.keras.layers.Layer):
def __init__(self,*, num_layers, d_model, num_heads, dff, target_vocab_size, rate=0.1):
super(Decoder, self).__init__()
self.d_model = d_model
self.num_layers = num_layers
self.embedding = tf.keras.layers.Embedding(target_vocab_size, d_model)
self.pos_encoding = positional_encoding(MAX_TOKENS, d_model)
self.dec_layers = [DecoderLayer(d_model=d_model, num_heads=num_heads, dff=dff, rate=rate) for _ in range(num_layers)]
self.dropout = tf.keras.layers.Dropout(rate)
def call(self, x, enc_output, training, look_ahead_mask, padding_mask):
seq_len = tf.shape(x)[1]
attention_weights = {}
x = self.embedding(x) # (batch_size, target_seq_len, d_model)
x *= tf.math.sqrt(tf.cast(self.d_model, tf.float32))
x += self.pos_encoding[:, :seq_len, :]
x = self.dropout(x, training=training)
for i in range(self.num_layers):
x, block1, block2 = self.dec_layers[i](x, enc_output, training, look_ahead_mask, padding_mask)
attention_weights[f'decoder_layer{i+1}_block1'] = block1
attention_weights[f'decoder_layer{i+1}_block2'] = block2
# x.shape == (batch_size, target_seq_len, d_model)
return x, attention_weights
(7) 定义了编码器和解码器后，实现 Transformer 架构，由编码器、解码器和最终的线性层组成：
class Transformer(tf.keras.Model):
def __init__(self,*, num_layers, d_model, num_heads, dff, input_vocab_size, target_vocab_size, rate=0.1):
super().__init__()
self.encoder = Encoder(num_layers=num_layers, d_model=d_model,
num_heads=num_heads, dff=dff,
input_vocab_size=input_vocab_size, rate=rate)
self.decoder = Decoder(num_layers=num_layers, d_model=d_model,
num_heads=num_heads, dff=dff,
target_vocab_size=target_vocab_size, rate=rate)
self.final_layer = tf.keras.layers.Dense(target_vocab_size)
def call(self, inputs, training):
# Keras models prefer if you pass all your inputs in the first argument
inp, tar = inputs
enc_padding_mask, look_ahead_mask, dec_padding_mask = self.create_masks(inp, tar)
enc_output = self.encoder(inp, training, enc_padding_mask) # (batch_size, inp_seq_len, d_model)
# dec_output.shape == (batch_size, tar_seq_len, d_model)
dec_output, attention_weights = self.decoder(tar, enc_output, training, look_ahead_mask, dec_padding_mask)
final_output = self.final_layer(dec_output) # (batch_size, tar_seq_len, target_vocab_size)
return final_output, attention_weights
def create_masks(self, inp, tar):
# Encoder padding mask
enc_padding_mask = create_padding_mask(inp)
# Used in the 2nd attention block in the decoder.
# This padding mask is used to mask the encoder outputs.
dec_padding_mask = create_padding_mask(inp)
# Used in the 1st attention block in the decoder.
# It is used to pad and mask future tokens in the input received by the decoder.
look_ahead_mask = create_look_ahead_mask(tf.shape(tar)[1])
dec_target_padding_mask = create_padding_mask(tar)
look_ahead_mask = tf.maximum(dec_target_padding_mask, look_ahead_mask)
return enc_padding_mask, look_ahead_mask, dec_padding_mask
(8) 定义超参数和优化器，并定义损失函数：
num_layers = 4
d_model = 128
dff = 512
num_heads = 8
dropout_rate = 0.1
class CustomSchedule(tf.keras.optimizers.schedules.LearningRateSchedule):
def __init__(self, d_model, warmup_steps=4000):
super(CustomSchedule, self).__init__()
self.d_model = d_model
self.d_model = tf.cast(self.d_model, tf.float32)
self.warmup_steps = warmup_steps
def __call__(self, step):
arg1 = tf.math.rsqrt(tf.cast(step, dtype=tf.float32))
arg2 = tf.cast(step, dtype=tf.float32) * (self.warmup_steps ** -1.5)
return tf.math.rsqrt(self.d_model) * tf.math.minimum(arg1, arg2)
learning_rate = CustomSchedule(d_model)
optimizer = tf.keras.optimizers.Adam(learning_rate, beta_1=0.9,
beta_2=0.98, epsilon=1e-9)
loss_object = tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True, reduction='none')
def loss_function(real, pred):
mask = tf.math.logical_not(tf.math.equal(real, 0))
loss_ = loss_object(real, pred)
mask = tf.cast(mask, dtype=loss_.dtype)
loss_ *= mask
return tf.reduce_sum(loss_)/tf.reduce_sum(mask)
def accuracy_function(real, pred):
accuracies = tf.equal(real, tf.argmax(pred, axis=2))
mask = tf.math.logical_not(tf.math.equal(real, 0))
accuracies = tf.math.logical_and(mask, accuracies)
accuracies = tf.cast(accuracies, dtype=tf.float32)
mask = tf.cast(mask, dtype=tf.float32)
return tf.reduce_sum(accuracies)/tf.reduce_sum(mask)
train_loss = tf.keras.metrics.Mean(name='train_loss')
train_accuracy = tf.keras.metrics.Mean(name='train_accuracy')
(9) 定义 Transformer：
transformer = Transformer(
num_layers=num_layers,
d_model=d_model,
num_heads=num_heads,
dff=dff,
input_vocab_size=tokenizers.pt.get_vocab_size().numpy(),
target_vocab_size=tokenizers.en.get_vocab_size().numpy(),
rate=dropout_rate)
(10) 定义检查点：
checkpoint_path = './checkpoints/train'
ckpt = tf.train.Checkpoint(transformer=transformer, optimizer=optimizer)
ckpt_manager = tf.train.CheckpointManager(ckpt, checkpoint_path, max_to_keep=5)
# if a checkpoint exists, restore the latest checkpoint.
if ckpt_manager.latest_checkpoint:
ckpt.restore(ckpt_manager.latest_checkpoint)
print('Latest checkpoint restored!!')
(11) 需要注意的是，Transformer 属于自回归模型，当前输出用于预测未来情况。使用前瞻掩码，以防止模型窥探预期输出。定义 train_step() 函数：
train_step_signature = [
tf.TensorSpec(shape=(None, None), dtype=tf.int64),
tf.TensorSpec(shape=(None, None), dtype=tf.int64),
]
@tf.function(input_signature=train_step_signature)
def train_step(inp, tar):
tar_inp = tar[:, :-1]
tar_real = tar[:, 1:]
with tf.GradientTape() as tape:
predictions, _ = transformer([inp, tar_inp], training = True)
loss = loss_function(tar_real, predictions)
gradients = tape.gradient(loss, transformer.trainable_variables)
optimizer.apply_gradients(zip(gradients, transformer.trainable_variables))
train_loss(loss)
train_accuracy(accuracy_function(tar_real, predictions))
EPOCHS = 20
for epoch in range(EPOCHS):
start = time.time()
train_loss.reset_states()
train_accuracy.reset_states()
# inp -> portuguese, tar -> english
for (batch, (inp, tar)) in enumerate(train_batches):
train_step(inp, tar)
if batch % 50 == 0:
print(f'Epoch {epoch + 1} Batch {batch} Loss {train_loss.result():.4f} Accuracy {train_accuracy.result():.4f}')
if (epoch + 1) % 5 == 0:
ckpt_save_path = ckpt_manager.save()
print(f'Saving checkpoint for epoch {epoch+1} at {ckpt_save_path}')
print(f'Epoch {epoch + 1} Loss {train_loss.result():.4f} Accuracy{train_accuracy.result():.4f}')
print(f'Time taken for 1 epoch: {time.time() - start:.2f} secs\n')
运行训练过程，输出结果如下情况：
Epoch 1 Loss 6.9093 Accuracy0.1035
Time taken for 1 epoch: 126.20 secs
...
Epoch 20 Loss 1.5288 Accuracy0.6666
Time taken for 1 epoch: 59.28 secs
3. 执行翻译任务
(1) 接下来，可以执行翻译任务，步骤如下：
- 使用葡萄牙语分词器 (
tokenizers.pt) 对输入句子进行编码 - 解码器输入初始化为
[START]词元 - 计算填充掩码和前瞻掩码
- 解码器通过查看编码器输出和自身的输出(自注意力机制)来输出预测结果
- 将预测的词元与解码器输入连接，并传递给解码器
class Translator(tf.Module):
def __init__(self, tokenizers, transformer):
self.tokenizers = tokenizers
self.transformer = transformer
def __call__(self, sentence, max_length=MAX_TOKENS):
# input sentence is portuguese, hence adding the start and end token
assert isinstance(sentence, tf.Tensor)
if len(sentence.shape) == 0:
sentence = sentence[tf.newaxis]
sentence = self.tokenizers.pt.tokenize(sentence).to_tensor()
encoder_input = sentence
# As the output language is english, initialize the output with the english start token.
start_end = self.tokenizers.en.tokenize([''])[0]
start = start_end[0][tf.newaxis]
end = start_end[1][tf.newaxis]
# 'tf.TensorArray' is required here (instead of a python list) so that the dynamic-loop can be traced by 'tf.function'.
output_array = tf.TensorArray(dtype=tf.int64, size=0, dynamic_size=True)
output_array = output_array.write(0, start)
for i in tf.range(max_length):
output = tf.transpose(output_array.stack())
predictions, _ = self.transformer([encoder_input, output], training=False)
# select the last token from the seq_len dimension
predictions = predictions[:, -1:, :]
# (batch_size, 1, vocab_size)
predicted_id = tf.argmax(predictions, axis=-1)
# concatentate the predicted_id to the output which is given to the decoder as its input.
output_array = output_array.write(i+1, predicted_id[0])
if predicted_id == end:
break
output = tf.transpose(output_array.stack())
# output.shape (1, tokens)
text = tokenizers.en.detokenize(output)[0]
# shape: ()
tokens = tokenizers.en.lookup(output)[0]
_, attention_weights = self.transformer([encoder_input, output[:,:-1]], training=False)
return text, tokens, attention_weights
(2) 使用以下示例句子样本调用翻译器：
translator = Translator(tokenizers, transformer)
def print_translation(sentence, tokens, ground_truth):
print(f'{"Input:":15s}: {sentence}')
print(f'{"Prediction":15s}: {tokens.numpy().decode("utf-8")}')
print(f'{"Ground truth":15s}: {ground_truth}')
sentence = 'os meus vizinhos ouviram sobre esta ideia.'
ground_truth = 'and my neighboring homes heard about this idea .'
translated_text, translated_tokens, attention_weights = translator(tf.constant(sentence))
print_translation(sentence, translated_text, ground_truth).
结果如下所示：
Input: : os meus vizinhos ouviram sobre esta ideia.
Prediction : my neighbors have heard about this idea .
Ground truth : and my neighboring homes heard about this idea .
小结
在本节中，我们学习了如何实现经典的 Transformer，考虑了位置编码、多头注意力机制和掩码。
系列链接
TensorFlow深度学习实战（1）——神经网络与模型训练过程详解
TensorFlow深度学习实战（2）——使用TensorFlow构建神经网络
TensorFlow深度学习实战（3）——深度学习中常用激活函数详解
TensorFlow深度学习实战（4）——正则化技术详解
TensorFlow深度学习实战（5）——神经网络性能优化技术详解
TensorFlow深度学习实战（6）——回归分析详解
TensorFlow深度学习实战（7）——分类任务详解
TensorFlow深度学习实战（8）——卷积神经网络
TensorFlow深度学习实战（9）——构建VGG模型实现图像分类
TensorFlow深度学习实战（10）——迁移学习详解
TensorFlow深度学习实战（11）——风格迁移详解
TensorFlow深度学习实战（12）——词嵌入技术详解
TensorFlow深度学习实战（13）——神经嵌入详解
TensorFlow深度学习实战（14）——循环神经网络详解
TensorFlow深度学习实战（15）——编码器-解码器架构
TensorFlow深度学习实战（16）——注意力机制详解
TensorFlow深度学习实战（17）——主成分分析详解
TensorFlow深度学习实战（18）——K-means 聚类详解
TensorFlow深度学习实战（19）——受限玻尔兹曼机
TensorFlow深度学习实战（20）——自组织映射详解
TensorFlow深度学习实战（21）——Transformer架构详解与实现
