1 高可用集群

1.1 集群类型

LB：Load Balance 负载均衡
LVS/HAProxy/nginx（http/upstream, stream/upstream）
HA：High Availability 高可用集群
数据库、Redis
SPoF: Single Point of Failure，解决单点故障
HPC：High Performance Computing 高性能集群

1.2 系统可用性

SLA：Service-Level Agreement 服务等级协议（提供服务的企业与客户之间就服务的品质、水准、性能等方面所达成的双方共同认可的协议或契约）

A = MTBF / (MTBF+MTTR）

99.95%:(60*24*30)*(1-0.9995)=21.6分钟 #一般按一个月停机时间统计

指标：99.9%, 99.99%, 99.999%,99.9999% (越大越好)

1.3 系统故障

硬件故障：设计缺陷、wear out（损耗）、非人为不可抗拒因素软件故障：设计缺陷 bug

1.4 实现高可用

提升系统高用性的解决方案：降低MTTR- Mean Time To Repair(平均故障时间) 解决方案：建立冗余机制

active/passive 主/备
active/active 双主
active --> HEARTBEAT --> passive
active <--> HEARTBEAT <--> active

1.5.VRRP：Virtual Router Redundancy Protocol

虚拟路由冗余协议,解决静态网关单点风险

物理层:路由器、三层交换机
软件层:keepalived

1.5.1 VRRP 相关术语

虚拟路由器：Virtual Router
虚拟路由器标识：VRID(0-255)，唯一标识虚拟路由器
VIP：Virtual IP
VMAC：Virutal MAC (00-00-5e-00-01-VRID)
物理路由器：
- master：主设备
- backup：备用设备
- priority：优先级

1.5.2 VRRP 相关技术

通告：心跳，优先级等；周期性工作方式：抢占式，非抢占式安全认证：

无认证
简单字符认证：预共享密钥
MD5

工作模式：

主/备：单虚拟路由器
主/主：主/备（虚拟路由器1），备/主（虚拟路由器2）

2 Keepalived 部署

2.1 keepalived 简介

vrrp 协议的软件实现，原生设计目的为了高可用 ipvs服务

官网：Keepalived for Linux

功能：

基于vrrp协议完成地址流动
为vip地址所在的节点生成ipvs规则(在配置文件中预先定义)
为ipvs集群的各RS做健康状态检测
基于脚本调用接口完成脚本中定义的功能，进而影响集群事务，以此支持nginx、haproxy等服务

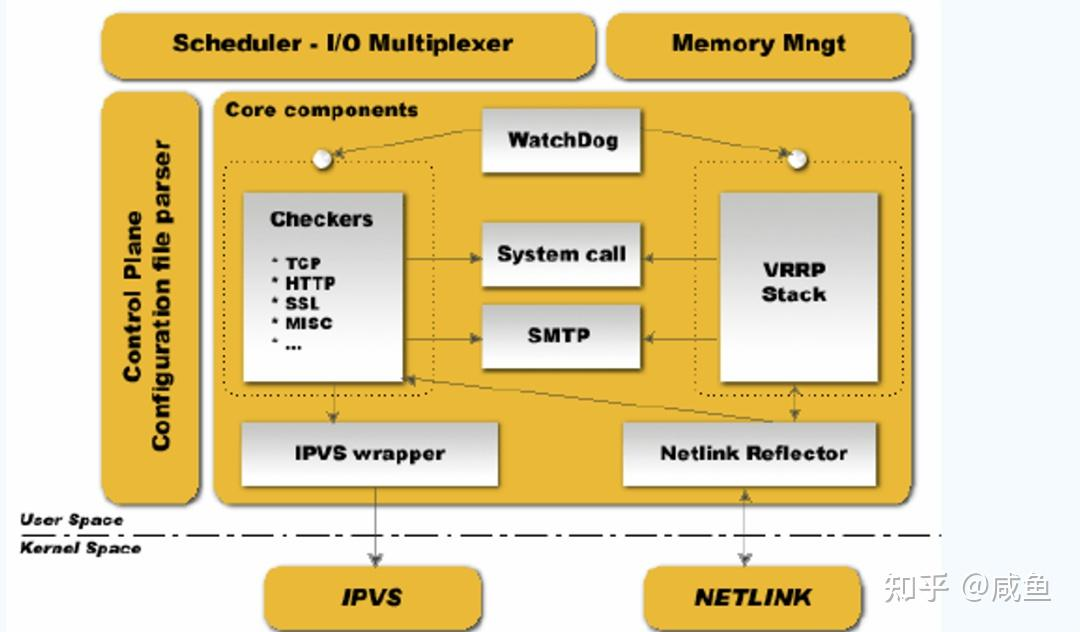

2.2 Keepalived 架构

官方文档：

Keepalived User Guide — Keepalived 1.4.3 documentation Keepalived for Linux

用户空间核心组件：

vrrp stack：VIP消息通告

checkers：监测real server

system call：实现 vrrp 协议状态转换时调用脚本的功能

SMTP：邮件组件

IPVS wrapper：生成IPVS规则

Netlink Reflector：网络接口

WatchDog：监控进程
控制组件：提供keepalived.conf 的解析器，完成Keepalived配置
IO复用器：针对网络目的而优化的自己的线程抽象
内存管理组件：为某些通用的内存管理功能（例如分配，重新分配，发布等）提供访问权限

2.3 Keepalived 环境准备

client eth0:172.25.254.111

KA1 eth0:172.25.254.50

KA2 eth0:172.25.254.60

RS1 ech0:172.25.254.11

RS2 ech0:172.25.254.22

各节点时间必须同步：ntp, chrony
关闭防火墙及SELinux
各节点之间可通过主机名互相通信：非必须
建议使用/etc/hosts文件实现：非必须
各节点之间的root用户可以基于密钥认证的ssh服务完成互相通信：非必须

2.4 Keepalived 相关文件

软件包名：keepalived
主程序文件：/usr/sbin/keepalived
主配置文件：/etc/keepalived/keepalived.conf
配置文件示例：/usr/share/doc/keepalived/
Unit File：/lib/systemd/system/keepalived.service
Unit File的环境配置文件：/etc/sysconfig/keepalived

[!WARNING]

RHEL7中可能会遇到一下bug，RHEL9中无此问题

systemctl restart keepalived #新配置可能无法生效
systemctl stop keepalived;systemctl start keepalived #无法停止进程，需要 kill 停止

2.5 配置语法说明

2.5.1 全局配置

! Configuration File for keepalived

global_defs {
   notification_email {
         timiniglee-zln@163.com		#keepalived 发生故障切换时邮件发送的目标邮箱，可以按行区分写多个

   }
   notification_email_from keepalived@KA1.timinglee.org	#发邮件的地址
   smtp_server 127.0.0.1								#邮件服务器地址
   smtp_connect_timeout 30								#邮件服务器连接timeout
   router_id KA1.timinglee.org							#每个keepalived主机唯一标识
   														#建议使用当前主机名，但多节点重名不影响

  vrrp_skip_check_adv_addr								#对所有通告报文都检查，会比较消耗性能
  														#启用此配置后，如果收到的通告报文和上一个报文是同一												  					#个路由器，则跳过检查，默认值为全检查


   vrrp_strict									#严格遵循vrrp协议
  												#启用此项后以下状况将无法启动服务:
 												#1.无VIP地址
 												#2.配置了单播邻居
 												#3.在VRRP版本2中有IPv6地址
 												#建议不加此项配置

  vrrp_garp_interval 1							#免费 ARP（Gratuitous ARP）报文时间间隔
  												#免费 ARP用于通知网络中其他设备，某 IP 地址对应的 MAC 地址发生了变化
  												#帮助网络设备更新 ARP 缓存，确保数据能正确转发到新的主节点

  vrrp_gna_interval 1							#用于配置发送 Gratuitous NA（免费邻居通告）报文的时间间隔
  												#通知网络中其他设备，某 IPv6 地址对应的链路层地址（MAC 地址）发生了变化
  												#帮助网络设备更新邻居缓存（Neighbor Cache）
  												#确保 IPv6 数据包能正确转发到新的主节点

  vrrp_mcast_group4 224.0.0.44 					#指定组播IP地址范围：

}

3 keepalived 示例

3.1 主备模式的部署

#KA2
[root@KA2 ~]# vim /etc/chrony.conf
....略....
pool 172.25.254.50 iburst
....略....
[root@KA2 ~]# systemctl restart chronyd.service

#KA1和KA2
dnf install keepalived -y


#KA1
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   notification_email {
     timinglee@timinglee.org
   }
   notification_email_from timinglee@timinglee.org
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id KA1
   vrrp_skip_check_adv_addr
   #vrrp_strict
   vrrp_garp_interval 1
   vrrp_gna_interval 1
   vrrp_mcast_group4 224.0.0.44
}

vrrp_instance WEBVIP {
    state MASTER
    interface eth0
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
}
....略....

[root@KA1 ~]# systemctl restart keepalived.service

#KA2 只看区别于KA1的地方
global_defs {
   router_id KA2
}

vrrp_instance WEBVIP {
    state BACKUP
    priority 80

}

[root@KA2 ~]# systemctl restart keepalived.service

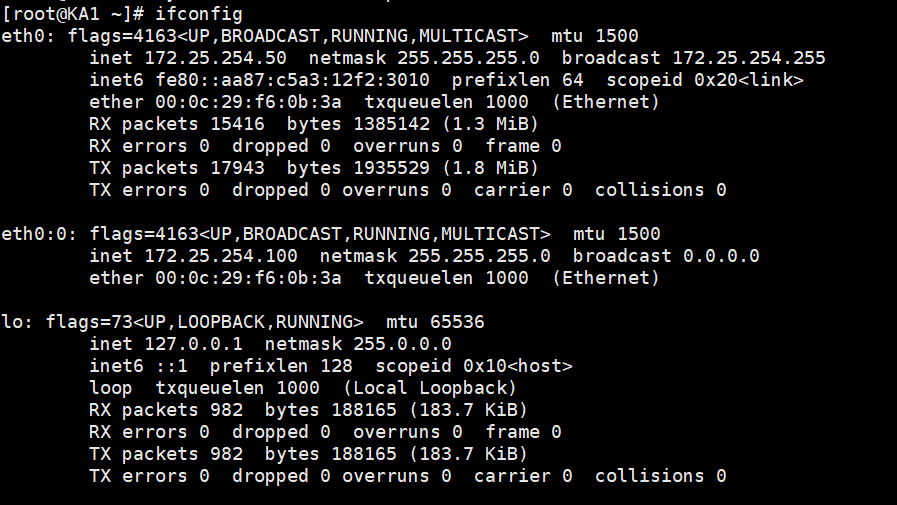

测试：

3.2 日志分离

[root@KA1 ~]# vim /etc/sysconfig/keepalived
KEEPALIVED_OPTIONS="-D -S 6"							#日志级别为0-7
[root@ka1 ~]#vim /etc/rsyslog.conf
local6.*        /var/log/keepalived.log
[root@ka1 ~]#systemctl restart keepalived.service rsyslog.service

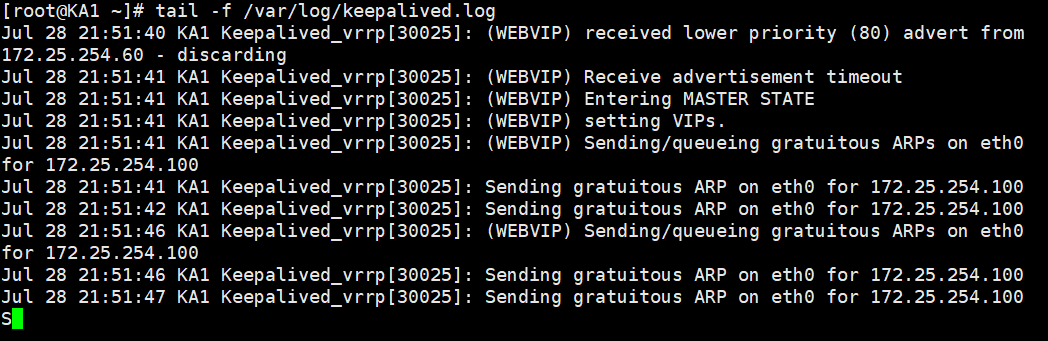

测试：

3.3 独立子配置文件

#KA1
[root@KA1 ~]# mkdir /etc/keepalived/conf.d
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
....略....
include "/etc/keepalived/conf.d/*.conf"

[root@KA1 ~]# systemctl restart keepalived.service

3.4 非抢占模式及延迟抢占

非抢占(携带vip的主机挂了后，即使后面恢复也不会再抢占vip)

#KA1
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
....略....
vrrp_instance WEBVIP {
    state BACKUP
    interface eth0
    nopreempt
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
}
[root@KA1 ~]# systemctl restart keepalived.service
#KA2
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
....略....
vrrp_instance WEBVIP {
    state BACKUP
    interface eth0
    virtual_router_id 51
    priority 80
        nopreempt
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
}
[root@KA2 ~]# systemctl restart keepalived.service

延迟抢占（高优先级恢复后延迟一会再抢回vip）

 #KA1
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
....略....
vrrp_instance WEBVIP {
    state BACKUP
    interface eth0
    preempt_delay 10	#抢占延迟10s
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
}
[root@KA1 ~]# systemctl restart keepalived.service

#KA2
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
....略....
vrrp_instance WEBVIP {
    state BACKUP
    interface eth0
    preempt_delay 10	#抢占延迟10s
    virtual_router_id 51
    priority 80
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
}
[root@KA2 ~]# systemctl restart keepalived.service

3.5 单播模式的设定

 #KA1
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
....略....
vrrp_instance WEBVIP {
    state BACKUP
    interface eth0
    virtual_router_id 51
    priority 100
    preempt_delay 10
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
    unicast_src_ip 172.25.254.50    #源50
    unicast_peer{
        172.25.254.60    #目标60
    }
}

[root@KA1 ~]# systemctl restart keepalived.service

#KA2
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
....略....
vrrp_instance WEBVIP {
    state BACKUP
    interface eth0
    virtual_router_id 51
    priority 80
    preempt_delay 10
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
    unicast_src_ip 172.25.254.60    #源60
    unicast_peer{
        172.25.254.50    目标50
    }
}

[root@KA1 ~]# systemctl restart keepalived.service

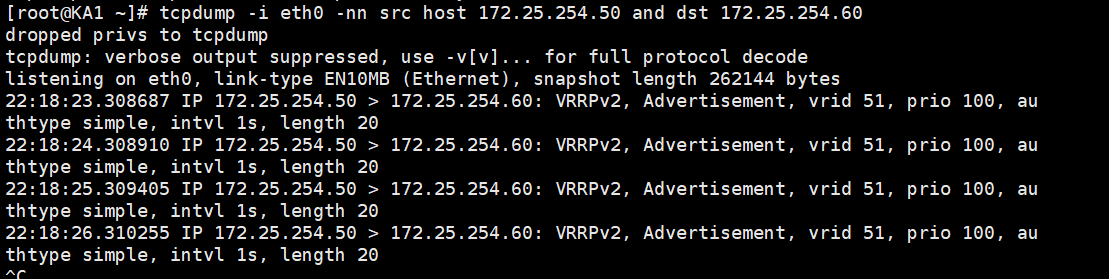

测试：

3.6 利用脚本实现vip迁移通知

#KA1
global_defs {
   notification_email {
     timinglee@timinglee.org
   }
   notification_email_from timinglee@timinglee.org
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id KA1
   vrrp_skip_check_adv_addr
   #vrrp_strict
   vrrp_garp_interval 1
   vrrp_gna_interval 1
   vrrp_mcast_group4 224.0.0.44
   enable_script_security    #启用脚本
   script_user root    #脚本身份
}


vrrp_instance WEBVIP {
    state MASTER
    interface eth0
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
    unicast_src_ip 172.25.254.50
    unicast_peer{
        172.25.254.60
    }
    notify_master "/etc/keepalived/scripts/mail.sh master"    #脚本加参数
    notify_backup "/etc/keepalived/scripts/mail.sh backup"
    notify_fault "/etc/keepalived/scripts/mail.sh faild"
}

[root@KA1 ~]# dnf install s-nail sendmail   -y
[root@KA1 ~]# systemctl enable --now sendmail.service
[root@KA1 ~]# echo test message |mail -s test 4411****4@qq.com
[root@KA1 ~]# mkdir /etc/keepalived/scripts
[root@KA1 ~]# vim /etc/keepalived/scripts/mail.sh
#!/bin/bash

case $1 in
master)
echo master | mailx -s test 441158154@qq.com
;;
backup)
echo master | mailx -s test 441158154@qq.com
;;
fault)
echo master | mailx -s test 441158154@qq.com
;;
*)
exit 1
;;
esac
~
[root@KA1 ~]# chmod +x  /etc/keepalived/scripts/mail.sh

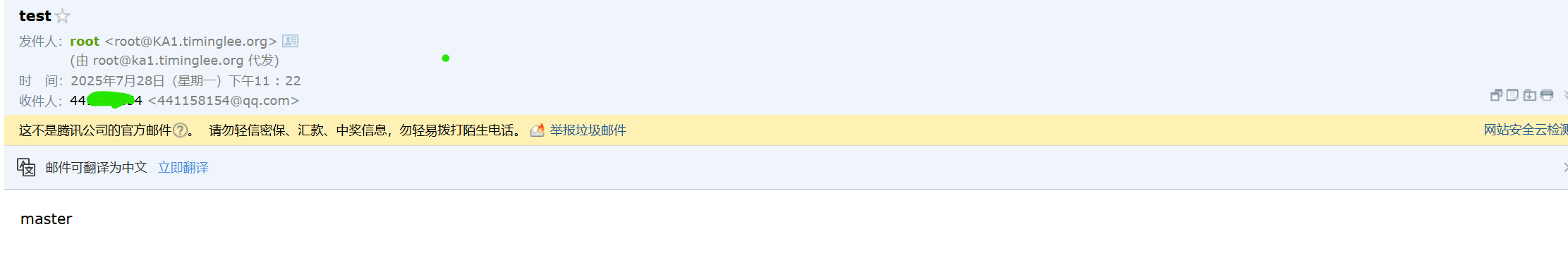

测试：

重启KA1的keepalived

3.7 双主模式

#KA1
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
....略（上面不动，新加一个vrrp_instance）....
vrrp_instance DBVIP {
    state BACKUP
    interface eth0
    virtual_router_id 52
    priority 80
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.200/24 dev eth0 label eth0:1
    }
    unicast_src_ip 172.25.254.50
    unicast_peer{
        172.25.254.60
    }
}

[root@KA1 ~]# systemctl restart keepalived.service

#KA2
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
....略（同上）....
vrrp_instance DBVIP {
    state MASTER
    interface eth0
    virtual_router_id 52
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.200/24 dev eth0 label eth0:1
    }
    unicast_src_ip 172.25.254.60
    unicast_peer{
        172.25.254.50
    }
}

[root@KA2 ~]# systemctl restart keepalived.service

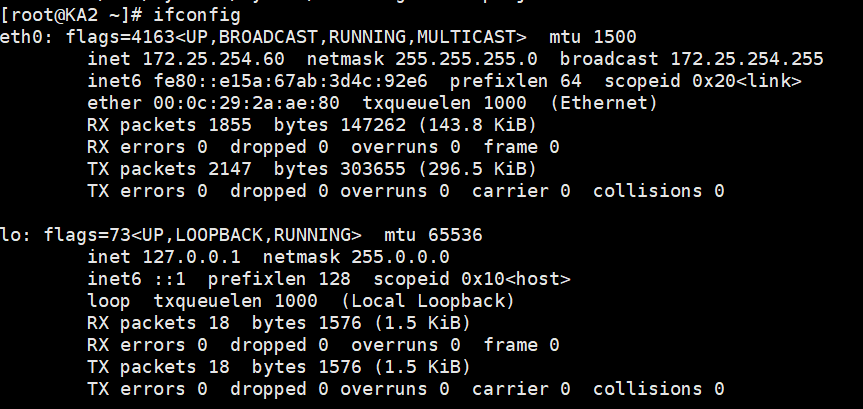

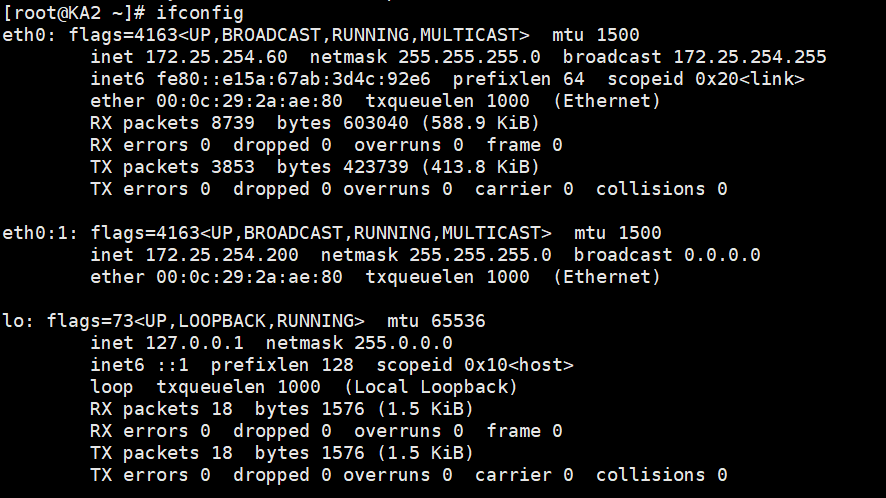

测试：

3.8 与lvs的整合实现自动检测

#RS1 RS2同RS1
[root@RS1 ~]# ip a a 172.25.254.100/32 dev lo
[root@RS1 ~]# echo net.ipv4.conf.all.arp_announce = 2 > /etc/sysctl.conf
[root@RS1 ~]# echo net.ipv4.conf.lo.arp_announce = 2 >> /etc/sysctl.conf
[root@RS1 ~]# echo net.ipv4.conf.lo.arp_ignore = 1  >> /etc/sysctl.conf
[root@RS1 ~]# echo net.ipv4.conf.all.arp_ignore = 1  >> /etc/sysctl.conf

#KA1 KA2同KA1
[root@KA1 ~]# dnf install ipvsadm-1.31-6.el9.x86_64 -y
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
....略....
virtual_server 172.25.254.100 80 {
    delay_loop 6
    lb_algo rr
    lb_kind DR
    protocol TCP

    real_server 172.25.254.11 80 {
        weight 1
        HTTP_GET {
            url {
              path /
              status_code 200
            }

            connect_timeout 2
            retry 3
            delay_before_retry 3
        }
    }
    real_server 172.25.254.22 80 {
        weight 1
        HTTP_GET {
            url {
              path /
              status_code 200
            }

            connect_timeout 2
            retry 3
            delay_before_retry 3
        }
    }
}

[root@KA1 ~]# systemctl restart keepalived.service
[root@KA1 ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  172.25.254.100:80 rr
  -> 172.25.254.11:80             Route   1      0          0
  -> 172.25.254.22:80             Route   1      0          0

测试：

#client
[root@client ~]# curl 172.25.254.100
RS2 - 172.25.254.22
[root@client ~]# curl 172.25.254.100
RS1 - 172.25.254.11

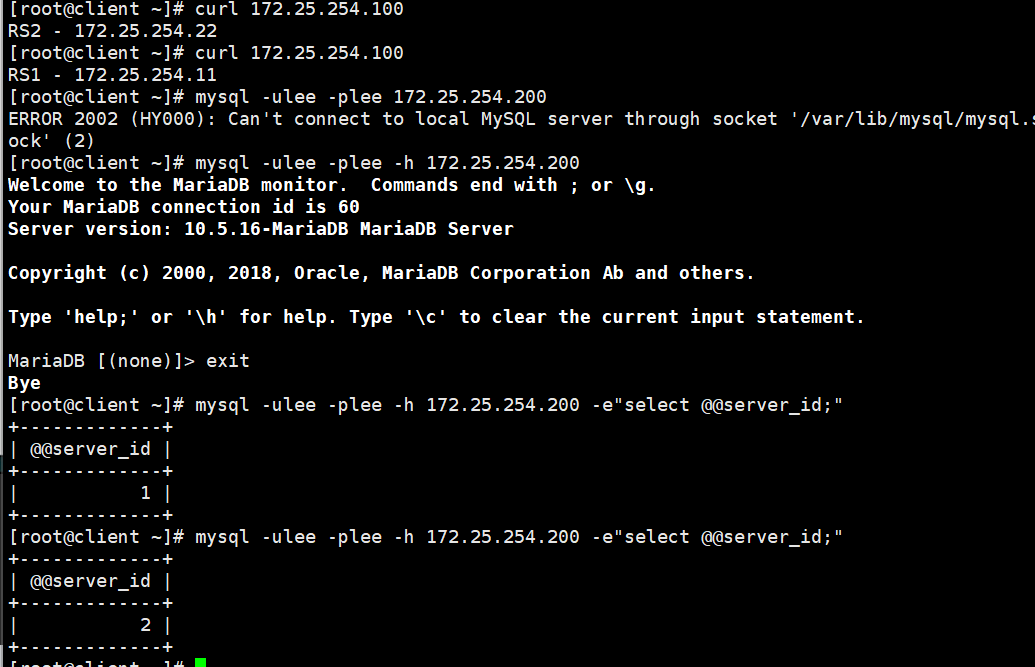

3.9 双主模式处理多种业务

#client
[root@client ~]# dnf install mariadb-server -y

#RS1
[root@RS1 ~]# dnf install mariadb-server -y
[root@RS1 ~]# vim /etc/my.cnf
[mysqld]
server-id=1
[root@RS1 ~]# systemctl restart mariadb
[root@RS1 ~]# mysql -e "grant all on *.* to lee@'%' identified by 'lee';"
[root@RS1 ~]# ip a a 172.25.254.200/32 dev lo

#RS2
[root@RS2 ~]# dnf install mariadb-server -y
[root@RS2 ~]# vim /etc/my.cnf
[mysqld]
server-id=2
[root@RS2 ~]# systemctl restart mariadb
[root@RS2 ~]# mysql -e "grant all on *.* to lee@'%' identified by 'lee';"
[root@RS2 ~]# ip a a 172.25.254.200/32 dev lo

#KA1 KA2同KA1
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
...略(新加的)...
virtual_server 172.25.254.200 3306 {
    delay_loop 6
    lb_algo rr
    lb_kind DR
    protocol TCP

    real_server 172.25.254.11 3306 {
        weight 1
           TCP_CHECK{
           connect_port 3306
            connect_timeout 10
            retry 3
            delay_before_retry 5
        }
    }
    real_server 172.25.254.22 3306 {
        weight 1
        TCP_CHECK{
            connect_port 3306
            connect_timeout 10
            retry 3
            delay_before_retry 5
        }
    }
}
[root@KA1 ~]# systemctl restart keepalived.service

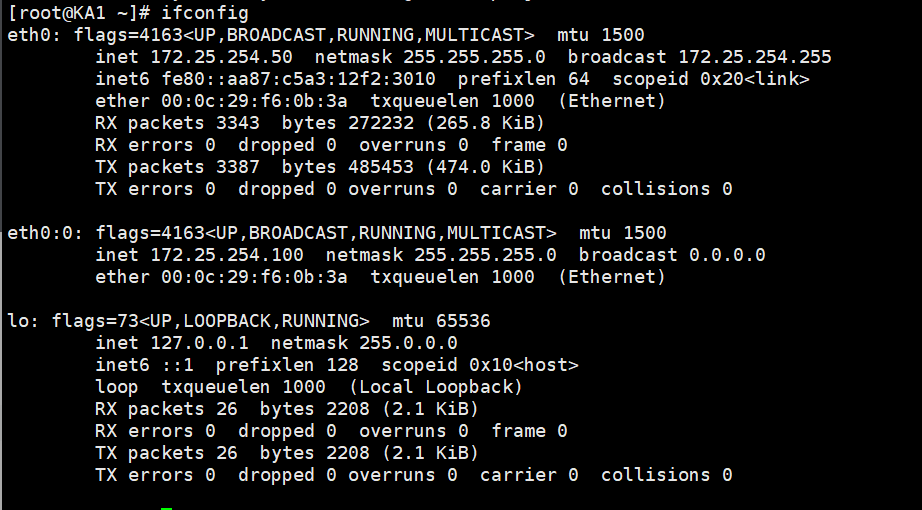

测试：

3.10 keepalived和haporxy整合

#KA1 KA2同KA1
[root@KA1 ~]# dnf install haproxy -y
[root@KA1 ~]# vim /etc/haproxy/haproxy.cfg
...略...
listen webcluster
    bind *:80
    mode http
    balance roundrobin
    server web1 172.25.254.11:80 check inter 3 fall 2 rise 3
    server web2 172.25.254.22:80 check inter 3 fall 2 rise 3
...注释掉别的frotend和backend...

[root@KA1 ~]# echo net.ipv4.ip_nonlocal_bind=1 >> /etc/sysctl.conf
[root@KA1 ~]# systemctl enable --now haproxy.service
[root@KA1 ~]# vim /etc/keepalived/scripts/haproxy.sh
#!/bin/bash
killall -0 haproxy &> /dev/null

[root@KA1 ~]# chmod +x /etc/keepalived/scripts/haproxy.sh

[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
global_defs {
   notification_email {
     timinglee@timinglee.org
   }
   notification_email_from timinglee@timinglee.org
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id KA1
   vrrp_skip_check_adv_addr
   #vrrp_strict
   vrrp_garp_interval 1
   vrrp_gna_interval 1
   vrrp_mcast_group4 224.0.0.44
   enable_script_security
   script_user root
}

vrrp_script CHECK_HAPROXY {
    script "/etc/keepalived/scripts/haproxy.sh"
    interval 1
    weight -30
    fall 2
    rise 2
    timeout 2

}
vrrp_instance WEBVIP {
    state MASTER
    interface eth0
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
    unicast_src_ip 172.25.254.50
    unicast_peer{
        172.25.254.60
    }
    track_script {
    CHECK_HAPROXY    #加载该脚本
    }
}

....注释掉之前的vrrp_server.....
[root@KA1 ~]# systemctl restart keepalived.service

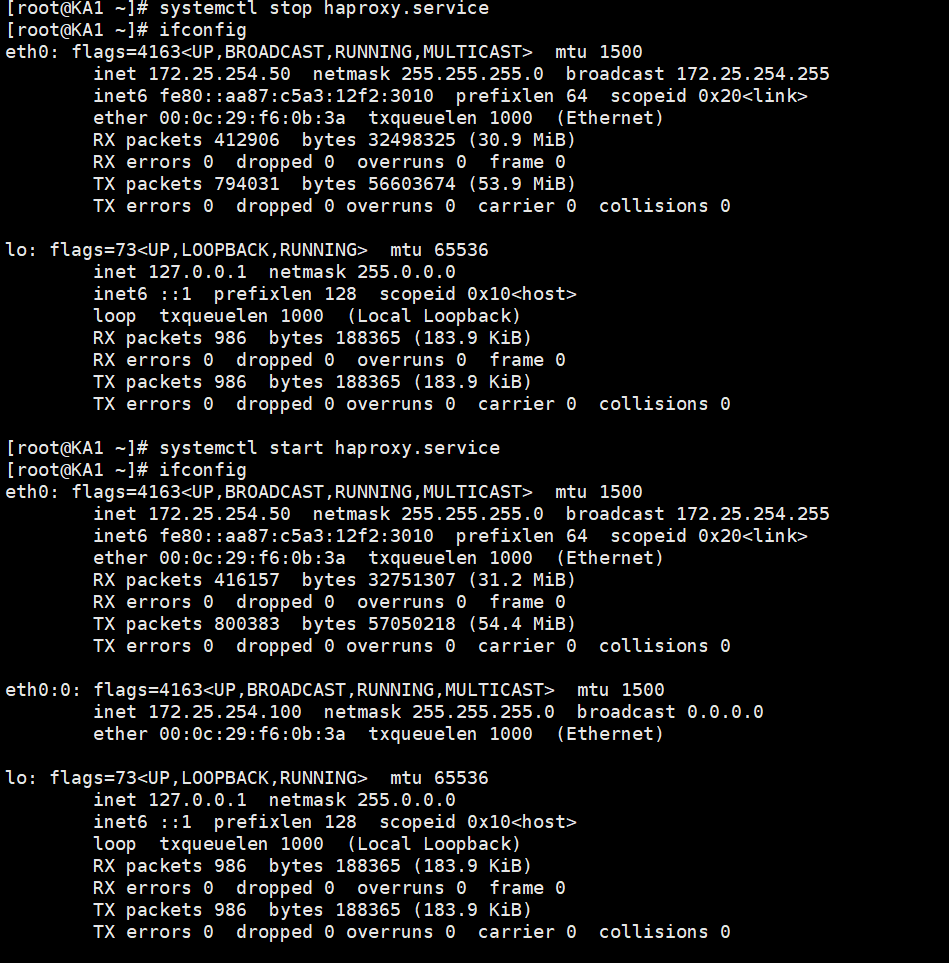

测试：

云原生作业(keepalived)
