PyTorch回忆（三）U-net

# unet_tutorial.py
import torch
import torch.nn as nn
import torch.nn.functional as F

# -------- 把打印函数写成一个工具 ----------
def print_shape(name, x):
    print(f"{name:<12}: {tuple(x.shape)}")

# ----------- 基础卷积块：两次(Conv+BN+ReLU) -----------
class DoubleConv(nn.Module):
    def __init__(self, in_c, out_c):
        super().__init__()
        self.conv = nn.Sequential(
            nn.Conv2d(in_c, out_c, 3, padding=1, bias=False),
            nn.BatchNorm2d(out_c),
            nn.ReLU(inplace=True),
            nn.Conv2d(out_c, out_c, 3, padding=1, bias=False),
            nn.BatchNorm2d(out_c),
            nn.ReLU(inplace=True)
        )
    def forward(self, x):
        return self.conv(x)

# ----------- 下采样：MaxPool + DoubleConv -----------
class Down(nn.Module):
    def __init__(self, in_c, out_c):
        super().__init__()
        self.pool_conv = nn.Sequential(
            nn.MaxPool2d(2),
            DoubleConv(in_c, out_c)
        )
    def forward(self, x):
        return self.pool_conv(x)

# ----------- 上采样：转置卷积或插值 + 拼接 + DoubleConv -----------
class Up(nn.Module):
    def __init__(self, in_c, out_c, bilinear=True):
        super().__init__()
        if bilinear:
            self.up = nn.Upsample(scale_factor=2, mode='bilinear', align_corners=True)
            self.conv = DoubleConv(in_c, out_c)
        else:
            self.up = nn.ConvTranspose2d(in_c, in_c//2, 2, stride=2)
            self.conv = DoubleConv(in_c, out_c)

    def forward(self, x1, x2):
        x1 = self.up(x1)
        # 处理尺寸不一致
        diffY = x2.size(2) - x1.size(2)
        diffX = x2.size(3) - x1.size(3)
        x1 = F.pad(x1, [diffX//2, diffX-diffX//2,
                        diffY//2, diffY-diffY//2])
        x = torch.cat([x2, x1], dim=1)
        return self.conv(x)

# ----------- 输出1×1卷积 -----------
class OutConv(nn.Module):
    def __init__(self, in_c, n_classes):
        super().__init__()
        self.conv = nn.Conv2d(in_c, n_classes, 1)

    def forward(self, x):
        return self.conv(x)

# ----------- 完整 UNet -----------
class UNet(nn.Module):
    def __init__(self, n_channels=3, n_classes=1, bilinear=True):
        super().__init__()
        self.inc   = DoubleConv(n_channels, 64)
        self.down1 = Down(64, 128)
        self.down2 = Down(128, 256)
        self.down3 = Down(256, 512)
        factor = 2 if bilinear else 1
        self.down4 = Down(512, 1024 // factor)
        self.up1   = Up(1024, 512 // factor, bilinear)
        self.up2   = Up(512, 256 // factor, bilinear)
        self.up3   = Up(256, 128 // factor, bilinear)
        self.up4   = Up(128, 64, bilinear)
        self.outc  = OutConv(64, n_classes)

   def forward(self, x):
        print_shape("input", x)
        x1 = self.inc(x)      ; print_shape("x1", x1)
        x2 = self.down1(x1)   ; print_shape("x2", x2)
        x3 = self.down2(x2)   ; print_shape("x3", x3)
        x4 = self.down3(x3)   ; print_shape("x4", x4)
        x5 = self.down4(x4)   ; print_shape("x5", x5)

        x = self.up1(x5, x4)  ; print_shape("up1", x)
        x = self.up2(x, x3)   ; print_shape("up2", x)
        x = self.up3(x, x2)   ; print_shape("up3", x)
        x = self.up4(x, x1)   ; print_shape("up4", x)
        logits = self.outc(x) ; print_shape("logits", logits)
        return logits

if __name__ == "__main__":
    model = UNet()
    print(model)
    input = torch.randn(2,3,256,256)
    _ = model(input)

input       : (2, 3, 256, 256)
x1          : (2, 64, 256, 256)   # 卷积后尺寸不变
x2          : (2, 128, 128, 128)  # MaxPool 2×
x3          : (2, 256, 64, 64)
x4          : (2, 512, 32, 32)
x5          : (2, 512, 16, 16)    # 512=1024//2 (bilinear=True)
up1         : (2, 256, 32, 32)    # 上采样2×，与x4拼接→512→256
up2         : (2, 128, 64, 64)
up3         : (2, 64, 128, 128)
up4         : (2, 64, 256, 256)
logits      : (2, 1, 256, 256)    # 输出与原图同尺寸

1. nn.MaxPool2d(2)里面是几，就是原来的几分之一，因为默认没有填充，步长等于kernel_size，这里就是尺寸变为原来的一半，输入特征图大小为 (4, 4) → 输出特征图大小为 (2, 2)。

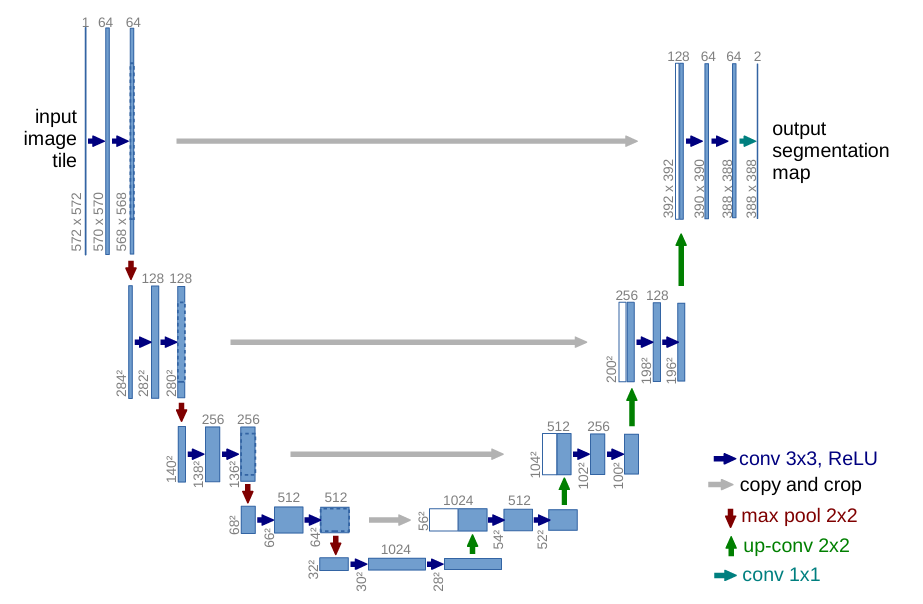

2. 原论文padding=0，所以每做一次 3×3 卷积，特征图宽/高各减少 2 像素，这里直接保持尺寸不变了
3. 加factor为了统一双线性插值和转置卷积，转置卷积nn.ConvTranspose2d(...)会使通道数减半，双线性插值不会。现在做上采样（Upsampling）时，“先插值再卷积” 已经成了最常用、最稳妥的方案，其次是转置卷积（Transpose Convolution），如果在做 U-Net 或通用语义分割，直接采用 双线性插值 + 卷积 就行；如果做 GAN 或需要学习式上采样，再考虑转置卷积。
4. nn.ReLU(inplace=True)直接在原始输入张量上进行修改，而不是创建一个新的张量来存储结果。这样可以节省内存
   nn.Conv2d(in_c, out_c, 3, padding=1, bias=False)bias=False是不为卷积层添加可学习的偏置项。BatchNorm 层本身包含一个可学习的偏置参数 β，可以替代卷积层的偏置。在现代 CNN 架构中，如果卷积层后紧跟 BatchNorm，通常都会设置 bias=False。
