前言

D2DEngine V1.0.1 链接：https://blog.csdn.net/DGAF2198588973/article/details/125909836

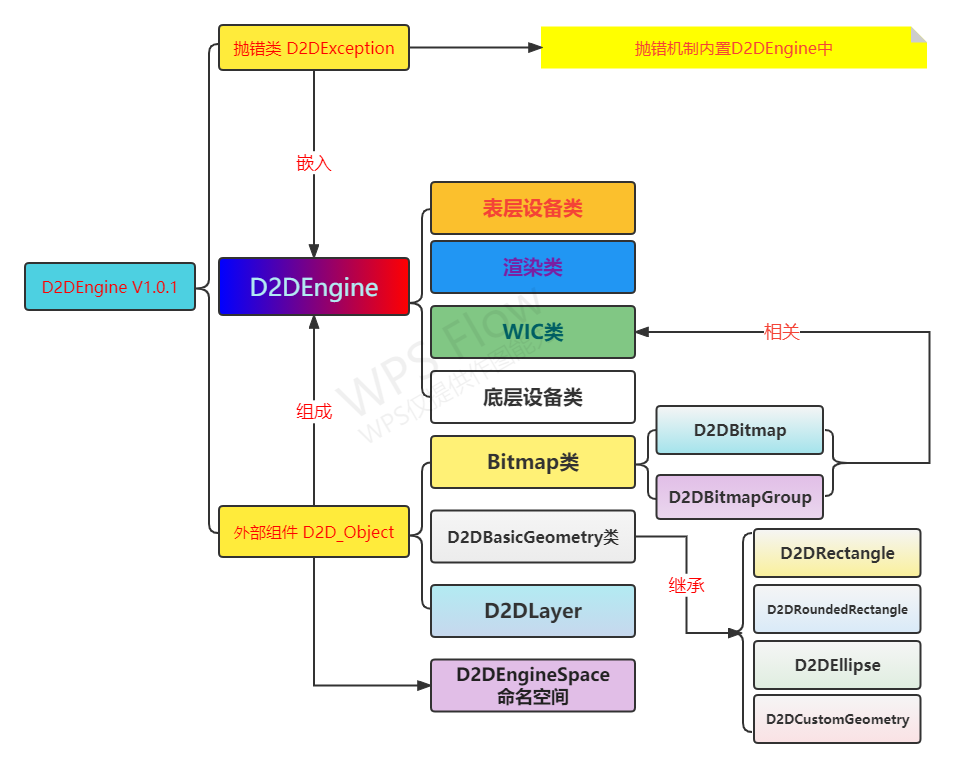

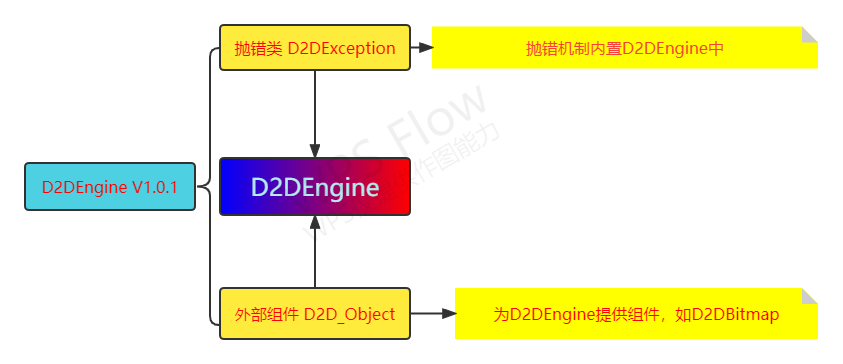

D2DEngine内部架构简析

将"符合模式"一项改"否"(/permissive)

—————————————————————————————————————————————————————

模板.cpp

模板对所有D2DEngine程序都通用

#include<windows.h>

#include"D2DEngine1_0.h" //直接引用头文件




LRESULT CALLBACK CallBackFunc(HWND hwnd, UINT message, WPARAM wParam, LPARAM lParam)
{
	switch(message)
	{

	case WM_DESTROY:
		PostQuitMessage(0);
		break;

	default:
		return DefWindowProc(hwnd, message, wParam, lParam);
	}

	return 0;
}


int WINAPI WinMain(HINSTANCE hin, HINSTANCE, LPSTR, int CmdShow)
{

	MSG msg = {};
	WNDCLASSEX wcex = {};

	memset(&wcex, 0, sizeof(wcex));
	wcex.cbSize = sizeof(WNDCLASSEX);
	wcex.lpfnWndProc = CallBackFunc;
	wcex.lpszClassName = L"D2D";
	wcex.hInstance = hin;


	wcex.style = CS_GLOBALCLASS;  // 去掉ReDraw重画
	wcex.hbrBackground = (HBRUSH)GetStockObject(NULL_BRUSH);
	// 设置为NULL_BRUSH,不需要来自GDI的任何绘制

	RegisterClassEx(&wcex);

	HWND hwnd = CreateWindowW(wcex.lpszClassName, L"D2D",
		WS_OVERLAPPED | WS_SYSMENU,
		// WS_OVERLAPPEDWINDOW 会触发OnSize消息,暂时先不处理这个消息
		0, 0, 640, 480,
		nullptr,
		nullptr,
		hin,
		nullptr
	);

	ShowWindow(hwnd, CmdShow);
	// 因为 CS_GLOBALCLASS，必须要用ShowWindow显示窗口


	//————————————————————————————————————————————————————————————————————





	//TODO:在这里进行 Direct2D渲染





	//————————————————————————————————————————————————————————————————————


	while (GetMessage(&msg, NULL, 0, 0) > 0)
	{
		TranslateMessage(&msg);
		DispatchMessage(&msg);
	}

	return msg.wParam;
}

—————————————————————————————————————————————————————

D2DEngine全代码示例

1.绘制背景色窗口

// D2DHelloWorld.cpp

#include<windows.h>

#include"D2DEngine1_0.h"

using namespace D2D1;



LRESULT CALLBACK CallBackFunc(HWND hwnd, UINT message, WPARAM wParam, LPARAM lParam)
{
	switch(message)
	{

	case WM_DESTROY:
		PostQuitMessage(0);
		break;

	default:
		return DefWindowProc(hwnd, message, wParam, lParam);
	}

	return 0;
}


int WINAPI WinMain(HINSTANCE hin, HINSTANCE, LPSTR, int CmdShow)
{

	MSG msg = {};
	WNDCLASSEX wcex = {};

	memset(&wcex, 0, sizeof(wcex));
	wcex.cbSize = sizeof(WNDCLASSEX);
	wcex.lpfnWndProc = CallBackFunc;
	wcex.lpszClassName = L"D2D";
	wcex.hInstance = hin;
	wcex.style = CS_GLOBALCLASS;
	wcex.hbrBackground = (HBRUSH)GetStockObject(NULL_BRUSH);

	RegisterClassEx(&wcex);

	HWND hwnd = CreateWindowW(wcex.lpszClassName, L"D2D",
		WS_OVERLAPPED | WS_SYSMENU,
		0, 0, 640, 480,
		nullptr,
		nullptr,
		hin,
		nullptr
	);

	ShowWindow(hwnd, CmdShow);


	//————————————————————————————————————————————————————————————————————

	D2DEngine* Engine = new D2DEngine; //创建 D2DEngine对象

	Engine->Initialize(hwnd); //用句柄初始化D2DEngine

	Engine->BeginDraw();

	Engine->Clear(ColorF::Blue);  //将窗口清空并渲染成蓝色

	Engine->EndDraw();

	//————————————————————————————————————————————————————————————————————


	while (GetMessage(&msg, NULL, 0, 0) > 0)
	{
		TranslateMessage(&msg);
		DispatchMessage(&msg);
	}

	return msg.wParam;
}

—————————————————————————————————————————————————————

2.绘制静态图片

// D2DDrawStaticBitmap.cpp

#include<windows.h>

#include"D2DEngine1_0.h"

using namespace std;
using namespace D2D1;



LRESULT CALLBACK CallBackFunc(HWND hwnd, UINT message, WPARAM wParam, LPARAM lParam)
{
	switch(message)
	{

	case WM_DESTROY:
		PostQuitMessage(0);
		break;

	default:
		return DefWindowProc(hwnd, message, wParam, lParam);
	}

	return 0;
}


int WINAPI WinMain(HINSTANCE hin, HINSTANCE, LPSTR, int CmdShow)
{

	MSG msg = {};
	WNDCLASSEX wcex = {};

	memset(&wcex, 0, sizeof(wcex));
	wcex.cbSize = sizeof(WNDCLASSEX);
	wcex.lpfnWndProc = CallBackFunc;
	wcex.lpszClassName = L"D2D";
	wcex.hInstance = hin;
	wcex.style = CS_GLOBALCLASS;
	wcex.hbrBackground = (HBRUSH)GetStockObject(NULL_BRUSH);

	RegisterClassEx(&wcex);

	HWND hwnd = CreateWindowW(wcex.lpszClassName, L"D2D",
		WS_OVERLAPPED | WS_SYSMENU,
		0, 0, 517.5, 709.5,
		nullptr,
		nullptr,
		hin,
		nullptr
	);

	ShowWindow(hwnd, CmdShow);




	D2DEngine* Engine = new D2DEngine; // 创建 D2DEngine对象

	Engine->Initialize(hwnd); // 初始化 D2DEngine设备

	D2DBitmap Photo(L"鬼吕.jpeg");
	// 创建 Picture类对象,并用图片路径初始化

	Engine->TransformPictureIntoBitmap(Photo);

	// 图片转换,经过这一步才能正确加载 D2D位图

	Engine->BeginDraw(); // 开始绘制

	Engine->DrawBitmap(Photo, 0, 0, 517.5, 709.5); // 绘制图片

	Engine->EndDraw(); // 结束绘制





	while (GetMessage(&msg, NULL, 0, 0) > 0)
	{
		TranslateMessage(&msg);
		DispatchMessage(&msg);
	}

	return msg.wParam;
}

—————————————————————————————————————————————————————

3.绘制动态图片

// D2DDrawDynamicBitmap.cpp

#include<windows.h>
#include<thread>

#include"D2DEngine1_0.h"

using namespace std;
using namespace D2D1;


D2DEngine* Engine = new D2DEngine; // 创建 D2DEngine对象
D2DBitmapGroup BitmapGroup; // 创建图组,用于动图
D2DBitmap GIF(L"引流之主.gif"); // 创建 Picture类对象,并用图片路径初始化,这里填 GIF(动图路径)


void Draw()
{
	Engine->TransformPictureIntoBitmap(GIF, BitmapGroup);

	// 图片转换,经过这一步才能正确加载 D2D位图
	// 使用了 TransformPictureIntoBitmap 的重载函数

	size_t framecount = BitmapGroup.BitmapGroup.size(); //获取动图总帧数
	size_t tloop = 0; // 循环次数
	size_t i = 0; // 循环形参,表示第 i帧图片

	// 循环3次
	while (tloop < 3)
	{
		Engine->BeginDraw(); // 开始绘制

		Engine->DrawBitmap(BitmapGroup.BitmapGroup[i], 0, 0, 448, 680); // 绘制第 i帧图片

		Engine->EndDraw(); // 结束绘制

		Sleep(80); //使程序停止80毫秒,这样能产生视觉效应


		if (i == framecount - 1)  //如果播放到最后一帧
		{
			tloop++; //循环次数加一
			i = 0; //重置形参, 从第一帧开始绘制
		}

		i++; //帧数加一
	}
}


LRESULT CALLBACK CallBackFunc(HWND hwnd, UINT message, WPARAM wParam, LPARAM lParam)
{
	switch (message)
	{

	case WM_DESTROY:
		PostQuitMessage(0);
		break;

	default:
		return DefWindowProc(hwnd, message, wParam, lParam);
	}

	return 0;
}


int WINAPI WinMain(HINSTANCE hin, HINSTANCE, LPSTR, int CmdShow)
{

	MSG msg = {};
	WNDCLASSEX wcex = {};

	memset(&wcex, 0, sizeof(wcex));
	wcex.cbSize = sizeof(WNDCLASSEX);
	wcex.lpfnWndProc = CallBackFunc;
	wcex.lpszClassName = L"D2D";
	wcex.hInstance = hin;
	wcex.style = CS_GLOBALCLASS;
	wcex.hbrBackground = (HBRUSH)GetStockObject(NULL_BRUSH);

	RegisterClassEx(&wcex);

	HWND hwnd = CreateWindowW(wcex.lpszClassName, L"D2D",
		WS_OVERLAPPED | WS_SYSMENU,
		300, 0, 448, 680,
		nullptr,
		nullptr,
		hin,
		nullptr
	);

	ShowWindow(hwnd, CmdShow);


	Engine->Initialize(hwnd); // 初始化 D2DEngine设备

	thread thread_1(Draw); // 开启线程

	thread_1.detach(); //释放线程,令线程不阻断消息循环

	while (GetMessage(&msg, NULL, 0, 0) > 0)
	{
		TranslateMessage(&msg);
		DispatchMessage(&msg);
	}

	return msg.wParam;
}

—————————————————————————————————————————————————————

4.导出窗口图像为静态图片

// D2DPackImage.cpp

#include<windows.h>

#include"D2DEngine1_0.h"

using namespace std;
using namespace D2D1;


LRESULT CALLBACK CallBackFunc(HWND hwnd, UINT message, WPARAM wParam, LPARAM lParam)
{
	switch(message)
	{

	case WM_DESTROY:
		PostQuitMessage(0);
		break;

	default:
		return DefWindowProc(hwnd, message, wParam, lParam);
	}

	return 0;
}


int WINAPI WinMain(HINSTANCE hin, HINSTANCE, LPSTR, int CmdShow)
{

	MSG msg = {};
	WNDCLASSEX wcex = {};

	memset(&wcex, 0, sizeof(wcex));
	wcex.cbSize = sizeof(WNDCLASSEX);
	wcex.lpfnWndProc = CallBackFunc;
	wcex.lpszClassName = L"D2D";
	wcex.hInstance = hin;
	wcex.style = CS_GLOBALCLASS;
	wcex.hbrBackground = (HBRUSH)GetStockObject(NULL_BRUSH);

	RegisterClassEx(&wcex);

	HWND hwnd = CreateWindowW(wcex.lpszClassName, L"D2D",
		WS_OVERLAPPED | WS_SYSMENU,
		300, 0, 640, 480,
		nullptr,
		nullptr,
		hin,
		nullptr
	);

	ShowWindow(hwnd, CmdShow);






	D2DEngine* Engine = new D2DEngine; // 创建 D2DEngine对象

	D2DBitmap Photo(L"曹操.jpeg"); //存储本文件夹下 曹操.jpeg 的图片路径

	Engine->Initialize(hwnd); // 初始化 D2DEngine设备,渲染目标默认指定整个窗口客户区

	Engine->TransformPictureIntoBitmap(Photo); //图片格式转换

	Engine->BeginDraw(); //开始绘制

	Engine->DrawBitmap(Photo, 0, 0, 640, 480); //将图片绘制在窗口客户区上

	Engine->EndDraw(); //停止绘制

	//至此, D2DEngine已绘制完成

	Engine->PackRenderTargetAsImageFile
	(L"", L"曹操", Picture_Format::BMP);
	//截取整个窗口 (由于没有指定渲染目标) ，并将窗口的图像转换为图像文件
	//由于没有指定路径名,程序会创建一个叫 曹操.bmp 的图像文件导出到其所在本地磁盘里
	//你可以去看看本地磁盘是不是多了什么





	while (GetMessage(&msg, NULL, 0, 0) > 0)
	{
		TranslateMessage(&msg);
		DispatchMessage(&msg);
	}

	return msg.wParam;
}

—————————————————————————————————————————————————————

5.绘制文本

// D2DDrawText.cpp

#include<windows.h>

#include"D2DEngine1_0.h"

using namespace D2D1;



LRESULT CALLBACK CallBackFunc(HWND hwnd, UINT message, WPARAM wParam, LPARAM lParam)
{
	switch (message)
	{

	case WM_DESTROY:
		PostQuitMessage(0);
		break;

	default:
		return DefWindowProc(hwnd, message, wParam, lParam);
	}

	return 0;
}


int WINAPI WinMain(HINSTANCE hin, HINSTANCE, LPSTR, int CmdShow)
{

	MSG msg = {};
	WNDCLASSEX wcex = {};

	memset(&wcex, 0, sizeof(wcex));
	wcex.cbSize = sizeof(WNDCLASSEX);
	wcex.lpfnWndProc = CallBackFunc;
	wcex.lpszClassName = L"D2D";
	wcex.hInstance = hin;
	wcex.style = CS_GLOBALCLASS;
	wcex.hbrBackground = (HBRUSH)GetStockObject(NULL_BRUSH);

	RegisterClassEx(&wcex);

	HWND hwnd = CreateWindowW(wcex.lpszClassName, L"D2D",
		WS_OVERLAPPED | WS_SYSMENU,
		0, 0, 900, 554,
		nullptr,
		nullptr,
		hin,
		nullptr
	);


	ShowWindow(hwnd, CmdShow);






	D2DEngine* Engine = new D2DEngine; //创建D2DEngine对象

	D2DBitmap Pic(L"率土之滨.jpeg"); //创建图片对象

	Engine->Initialize(hwnd); //用句柄初始化D2DEngine

	Engine->TransformPictureIntoBitmap(Pic);  //转换图片

	Engine->BeginDraw(); //开始渲染

	Engine->DrawBitmap(Pic, 0, 0, 900, 554); //先绘制图片

	Engine->ChangeTextFormat(40, ColorF::White,L"叶根友毛笔行书2.0版");
	//改变文本样式,字体大小为40,颜色为白色,字体簇(家族)为"叶根友毛笔行书2.0版"

	Engine->Drawtext(L"率土之滨,莫非王臣", 400, 100, 400, 100);
	//在 (400，100，800，200) 的区域绘制文字,使文字不被图片覆盖

	Engine->EndDraw(); //停止渲染






	while (GetMessage(&msg, NULL, 0, 0) > 0)
	{
		TranslateMessage(&msg);
		DispatchMessage(&msg);
	}

	return msg.wParam;
}

—————————————————————————————————————————————————————

6.绘制文本并导出为动图

// D2DDrawText2.cpp

#include<windows.h>
#include<string>
#include<thread> //线程库

#include"D2DEngine1_0.h"

using namespace std;
using namespace D2D1;


D2DEngine* Engine;  //全局D2DEngine，以便子线程能使用
D2DBitmap Pic(L"太师乱汉.jpeg");  //创建图片对象

void D2DThread();  //提供子线程运行的函数


LRESULT CALLBACK CallBackFunc(HWND hwnd, UINT message, WPARAM wParam, LPARAM lParam)
{
	switch (message)
	{

	case WM_DESTROY:
		PostQuitMessage(0);
		break;

	default:
		return DefWindowProc(hwnd, message, wParam, lParam);
	}

	return 0;
}


int WINAPI WinMain(HINSTANCE hin, HINSTANCE, LPSTR, int CmdShow)
{

	MSG msg = {};
	WNDCLASSEX wcex = {};

	memset(&wcex, 0, sizeof(wcex));
	wcex.cbSize = sizeof(WNDCLASSEX);
	wcex.lpfnWndProc = CallBackFunc;
	wcex.lpszClassName = L"D2D";
	wcex.hInstance = hin;
	wcex.style = CS_GLOBALCLASS;
	wcex.hbrBackground = (HBRUSH)GetStockObject(NULL_BRUSH);

	RegisterClassEx(&wcex);

	HWND hwnd = CreateWindowW(wcex.lpszClassName, L"D2D",
		WS_OVERLAPPED | WS_SYSMENU,
		0, 0, 1280, 642,
		nullptr,
		nullptr,
		hin,
		nullptr
	);


	ShowWindow(hwnd, CmdShow);





	Engine = new D2DEngine; //创建D2DEngine对象

	Engine->Initialize(hwnd); //用句柄初始化D2DEngine

	Engine->TransformPictureIntoBitmap(Pic);  //转换图片

	thread thread1(D2DThread); //创建子线程

	thread1.detach();  //不阻塞主线程，让子线程单独运行





	while (GetMessage(&msg, NULL, 0, 0) > 0)
	{
		TranslateMessage(&msg);
		DispatchMessage(&msg);
	}

	return msg.wParam;
}


void D2DThread()
{
	D2DBitmapGroup Group; //创建图组

	wstring text(L"董卓无道,帝室羸落,天下大乱,民不聊生,时待命世之英杰以济之");

	D2D1::ColorF color(1.0f, 0.0f, 0.0f);  //字体颜色

	for (size_t i = 0; i < text.size(); i++)
	{
		color.r -= 0.03f;
		color.g += 0.03f;
		color.b += 0.03f;

		Engine->BeginDraw(); //开始渲染

		Engine->DrawBitmap(Pic, 0, 0, 1280, 642); //先绘制图片

		Engine->ChangeTextFormat(40, color, L"叶根友毛笔行书2.0版");
		//改变文本样式,字体大小为40,颜色为白色,字体簇(家族)为"叶根友毛笔行书2.0版"

		Engine->Drawtext(&text.substr(0, i + 1)[0],
			75, 400, 1200, 100);
		//在 (75，400，1200，100) 的区域绘制文字,使文字不被图片覆盖

		Engine->EndDraw(); //停止渲染

		Group.BitmapGroup.push_back(Engine->RenderTargetShot()); //截一帧图片

		Sleep(200);  //停止200毫秒
	}

	Engine->PackD2DBitmapAsImageFile(L"", L"TSLH", Picture_Format::GIF, Group); //导出动图
}

—————————————————————————————————————————————————————

7.绘制图形1

// D2DDrawGeometry.cpp

#include<windows.h>

#include"D2DEngine1_0.h"

using namespace D2D1;



LRESULT CALLBACK CallBackFunc(HWND hwnd, UINT message, WPARAM wParam, LPARAM lParam)
{
	switch (message)
	{

	case WM_DESTROY:
		PostQuitMessage(0);
		break;

	default:
		return DefWindowProc(hwnd, message, wParam, lParam);
	}

	return 0;
}


int WINAPI WinMain(HINSTANCE hin, HINSTANCE, LPSTR, int CmdShow)
{

	MSG msg = {};
	WNDCLASSEX wcex = {};

	memset(&wcex, 0, sizeof(wcex));
	wcex.cbSize = sizeof(WNDCLASSEX);
	wcex.lpfnWndProc = CallBackFunc;
	wcex.lpszClassName = L"D2D";
	wcex.hInstance = hin;
	wcex.style = CS_GLOBALCLASS;
	wcex.hbrBackground = (HBRUSH)GetStockObject(NULL_BRUSH);

	RegisterClassEx(&wcex);

	HWND hwnd = CreateWindowW(wcex.lpszClassName, L"D2D",
		WS_OVERLAPPED | WS_SYSMENU,
		0, 0, 1000, 680,
		nullptr,
		nullptr,
		hin,
		nullptr
	);

	ShowWindow(hwnd, CmdShow);



	D2DEngine* Engine = new D2DEngine;
	Engine->Initialize(hwnd);

	D2DRectangle rectangle(100, 100, 100, 150);  //矩形
	D2DRoundedRectangle rrectangle(400, 200, 300, 200, 10, 10); //圆角矩形
	D2DEllipse ellipse(270, 450, 100, 100); //圆形

	//创建图形
	Engine->CreateRectangle(rectangle);
	Engine->CreateRoundedRectangle(rrectangle);
	Engine->CreateEllipse(ellipse);

	//绘制图形
	using D2D1::ColorF;
	Engine->BeginDraw();
	Engine->Clear();  //改变背景色为白色

	//绘制直线,直线不需要Create函数就可以直接填参绘制
	Engine->ChangeBrushColor(ColorF::MediumPurple);
	Engine->DrawLine(50, 400, 500, 60, 2.0f, D2D_Brush_Type::NORMAL);

	//填充矩形,使用普通画刷
	Engine->ChangeBrushColor(ColorF::CadetBlue);
	Engine->FillRectangle(rectangle,D2D_Brush_Type::NORMAL);

	//圆角矩形描边,线条宽度3.0f,使用普通画刷
	Engine->ChangeBrushColor(ColorF::Gold);
	Engine->DrawRoundedRectangle(rrectangle, 3.0f, D2D_Brush_Type::NORMAL);

	//绘制圆形
	Engine->ChangeBrushColor(ColorF::LightSteelBlue);
	Engine->FillEllipse(ellipse, D2D_Brush_Type::NORMAL);

	Engine->EndDraw();




	while (GetMessage(&msg, NULL, 0, 0) > 0)
	{
		TranslateMessage(&msg);
		DispatchMessage(&msg);
	}

	return msg.wParam;
}

—————————————————————————————————————————————————————

8.绘制图形2

// D2DGradientExample.cpp

#include<windows.h>

#include"D2DEngine1_0.h"

using namespace D2D1;



LRESULT CALLBACK CallBackFunc(HWND hwnd, UINT message, WPARAM wParam, LPARAM lParam)
{
	switch (message)
	{

	case WM_DESTROY:
		PostQuitMessage(0);
		break;

	default:
		return DefWindowProc(hwnd, message, wParam, lParam);
	}

	return 0;
}


int WINAPI WinMain(HINSTANCE hin, HINSTANCE, LPSTR, int CmdShow)
{

	MSG msg = {};
	WNDCLASSEX wcex = {};

	memset(&wcex, 0, sizeof(wcex));
	wcex.cbSize = sizeof(WNDCLASSEX);
	wcex.lpfnWndProc = CallBackFunc;
	wcex.lpszClassName = L"D2D";
	wcex.hInstance = hin;
	wcex.style = CS_GLOBALCLASS;
	wcex.hbrBackground = (HBRUSH)GetStockObject(NULL_BRUSH);

	RegisterClassEx(&wcex);

	HWND hwnd = CreateWindowW(wcex.lpszClassName, L"D2D",
		WS_OVERLAPPED | WS_SYSMENU,
		0, 0, 1000, 680,
		nullptr,
		nullptr,
		hin,
		nullptr
	);

	ShowWindow(hwnd, CmdShow);



	D2DEngine* Engine = new D2DEngine;
	Engine->Initialize(hwnd);

	D2DRectangle rectangle(100, 100, 100, 150);  //矩形
	D2DRoundedRectangle rrectangle(400, 200, 300, 200, 10, 10); //圆角矩形
	D2DEllipse ellipse(270, 450, 100, 100); //圆形

	//创建图形
	Engine->CreateRectangle(rectangle);
	Engine->CreateRoundedRectangle(rrectangle);
	Engine->CreateEllipse(ellipse);


	using D2D1::ColorF;

	//绘制图形
	Engine->BeginDraw();
	Engine->Clear(ColorF::Azure);


	//创建线性渐变画刷(第一次改变即为创建)
	Engine->ChangeLinearGradientBrushColor({ ColorF::Blue,ColorF::Red }, { 1,0 },
		D2D1::Point2F(50, 400), D2D1::Point2F(500, 60));
	Engine->DrawLine(50, 400, 500, 60, 2.0f, D2D_Brush_Type::LINEAR); //使用线性渐变画刷


	//使用上文创建的线性渐变画刷
	Engine->FillRectangle(rectangle, D2D_Brush_Type::LINEAR); //绘制矩形


	//创建放射渐变画刷
	Engine->ChangeRadialGradientBrushColor(
		{ ColorF::DarkBlue, ColorF::LightSteelBlue, ColorF::Blue },
		{ 1,2,1 }, Point2F(550,300), Point2F(), 250, 250);
	Engine->FillRoundedRectangle(rrectangle, D2D_Brush_Type::RADIAL); //绘制圆角矩形


	//改变放射渐变画刷颜色
	Engine->ChangeRadialGradientBrushColor(
		{ ColorF::Black, ColorF::White },
		{ 1,0 }, Point2F(270, 450), Point2F(), 100, 100);
	Engine->FillEllipse(ellipse, D2D_Brush_Type::RADIAL); //绘制椭圆

	Engine->EndDraw();




	while (GetMessage(&msg, NULL, 0, 0) > 0)
	{
		TranslateMessage(&msg);
		DispatchMessage(&msg);
	}

	return msg.wParam;
}

—————————————————————————————————————————————————————

9.绘制图形3

// D2DDrawGeometryX.cpp

#include "D2DEngine1_0.h" //直接引用头文件
#include <thread>

using namespace std;

D2DEngine* Engine = new D2DEngine; //D2D设备

void Render(HWND hwnd); //渲染函数


LRESULT CALLBACK CallBackFunc(HWND hwnd, UINT message, WPARAM wParam, LPARAM lParam)
{
	switch (message)
	{

	case WM_DESTROY:
		PostQuitMessage(0);
		break;

	default:
		return DefWindowProc(hwnd, message, wParam, lParam);
	}

	return 0;
}


int WINAPI WinMain(HINSTANCE hin, HINSTANCE, LPSTR, int CmdShow)
{

	MSG msg = {};
	WNDCLASSEX wcex = {};

	memset(&wcex, 0, sizeof(wcex));
	wcex.cbSize = sizeof(WNDCLASSEX);
	wcex.lpfnWndProc = CallBackFunc;
	wcex.lpszClassName = L"D2D";
	wcex.hInstance = hin;


	wcex.style = CS_GLOBALCLASS;
	wcex.hbrBackground = (HBRUSH)GetStockObject(NULL_BRUSH);

	RegisterClassEx(&wcex);

	HWND hwnd = CreateWindowW(wcex.lpszClassName, L"D2D",
		WS_OVERLAPPED | WS_SYSMENU,
		0, 0, 640, 480,
		nullptr,
		nullptr,
		hin,
		nullptr
	);

	ShowWindow(hwnd, CmdShow);


	Engine->Initialize(hwnd);  //初始化
	thread draw(Render,hwnd);  //创建线程
	draw.detach();  //释放线程,使其单独运行



	while (::GetMessage(&msg, NULL, 0, 0))
	{
		::TranslateMessage(&msg);
		::DispatchMessage(&msg);
	}

	return msg.wParam;
}



void Render(HWND hwnd)
{
	D2DBitmapGroup Group;  //用于存储动图
	D2DRoundedRectangle RRectangle(50, 175, 510, 60, 1, 1); //进度条框
	D2DRectangle rectangle(55, 180, 50, 50); //进度条

	Engine->CreateRoundedRectangle(RRectangle);
	Engine->ChangeBrushColor(D2D1::ColorF::Black);
	Engine->BeginDraw();
	Engine->Clear();  //背景设为白色
	Engine->DrawRoundedRectangle(RRectangle, 1.0f, D2D_Brush_Type::NORMAL); //绘制进度条框
	Engine->EndDraw();



	std::vector<D2D1::ColorF> Color; //颜色组
	Color.push_back(D2D1::ColorF::Red);
	Color.push_back(D2D1::ColorF::Blue);

	//渐变画刷
	Engine->ChangeLinearGradientBrushColor(Color, { 0,1 },
		D2D1::Point2F(55, 180), D2D1::Point2F(560, 235));
	for (size_t i = 1; i < 11; i++)
	{
		Engine->CreateRectangle(rectangle);  //创建进度条
		Engine->BeginDraw();
		Engine->FillRectangle(rectangle, D2D_Brush_Type::LINEAR); //绘制进度条
		Engine->EndDraw();

		rectangle.ChangeX(55 + i * 50); //改变进度条X坐标
		Group.BitmapGroup.push_back(Engine->RenderTargetShot()); //截取快照
		Sleep(200); //暂停0.2秒

	}

	Engine->PackD2DBitmapAsImageFile(L"", L"D2DEffect", Picture_Format::GIF, Group);
	//导出动图到磁盘

}

—————————————————————————————————————————————————————

10.图层

// D2DLayerExample.cpp

#include<windows.h>
#include<thread>

#include"D2DEngine1_0.h"

using namespace std;
using namespace D2D1;


D2DEngine* Engine = new D2DEngine; // 创建 D2DEngine对象
D2DBitmapGroup BitmapGroup; // 创建图组,用于动图
D2DBitmapGroup Group; // 图组2
D2DBitmap GIF(L"鸡你太美.gif"); // 创建 Picture类对象,并用图片路径初始化,这里填 GIF(动图路径)


void Draw()
{
	D2DLayer Layer; //创建图层

	Engine->TransformPictureIntoBitmap(GIF, BitmapGroup);

	// 图片转换,经过这一步才能正确加载 D2D位图
	// 使用了 TransformPictureIntoBitmap 的重载函数

	size_t framecount = BitmapGroup.BitmapGroup.size(); //获取动图总帧数
	size_t tloop = 0; // 循环次数
	size_t i = 0; // 循环形参,表示第i帧图片

	// 循环1次
	while (tloop < 1)
	{
		Engine->BeginDraw(); // 开始绘制
		Engine->PushLayer(Layer, D2DEngineSpace::D2D_Clip(80, 70, 120, 120));
		// 添加图层,裁取绘制区域,绘制区域外的图像将被覆盖

		Engine->DrawBitmap(BitmapGroup.BitmapGroup[i], 0, 0, 320, 320); // 绘制第 i帧图片

		Engine->PopLayer();
		Engine->EndDraw(); // 结束绘制

		Sleep(80); //使程序停止80毫秒,这样能产生视觉效应

		Group.BitmapGroup.push_back(Engine->RenderTargetShot()); //截图

		if (i == framecount - 1)  //如果播放到最后一帧
		{
			tloop++; //循环次数加一
			i = 0; //重置形参, 从第一帧开始绘制
		}

		i++; //帧数加一
	}

	Engine->PackD2DBitmapAsImageFile(L"", L"", Picture_Format::GIF, Group); //打包动图
}


LRESULT CALLBACK CallBackFunc(HWND hwnd, UINT message, WPARAM wParam, LPARAM lParam)
{
	switch (message)
	{

	case WM_DESTROY:
		PostQuitMessage(0);
		break;

	default:
		return DefWindowProc(hwnd, message, wParam, lParam);
	}

	return 0;
}


int WINAPI WinMain(HINSTANCE hin, HINSTANCE, LPSTR, int CmdShow)
{

	MSG msg = {};
	WNDCLASSEX wcex = {};

	memset(&wcex, 0, sizeof(wcex));
	wcex.cbSize = sizeof(WNDCLASSEX);
	wcex.lpfnWndProc = CallBackFunc;
	wcex.lpszClassName = L"D2D";
	wcex.hInstance = hin;
	wcex.style = CS_GLOBALCLASS;
	wcex.hbrBackground = (HBRUSH)GetStockObject(NULL_BRUSH);

	RegisterClassEx(&wcex);

	HWND hwnd = CreateWindowW(wcex.lpszClassName, L"D2D",
		WS_OVERLAPPED | WS_SYSMENU,
		300, 0, 320, 320,
		nullptr,
		nullptr,
		hin,
		nullptr
	);

	ShowWindow(hwnd, CmdShow);


	Engine->Initialize(hwnd); // 初始化 D2DEngine设备

	thread thread_1(Draw); // 开启线程

	thread_1.detach(); //释放线程,令线程不阻断消息循环

	while (GetMessage(&msg, NULL, 0, 0) > 0)
	{
		TranslateMessage(&msg);
		DispatchMessage(&msg);
	}

	return msg.wParam;
}

—————————————————————————————————————————————————————

D2DEngine全函数解析

—————————————————————————————————————————————————————

D2DEngine

表层设备类

D2DEngine::Initialize

初始化D2DEngine设备 （同时创建普通画刷）

bool Initialize(
		const HWND hwnd,
		const D2D1::ColorF BrushColor = D2D1::ColorF::White,
		RECT Draw_Region = {}
		);

hwnd 窗口句柄
BrushColor 要初始化的普通画刷颜色，默认白色
Draw_Region 绘制区域（相对于第一参数），默认整个窗口

任何有关D2DEngine的操作都必须放在此函数后面，否则设备初始化失败！

D2DEngine::ChangeRenderTarget

改变渲染目标（慎用）

bool ChangeRenderTarget(
        HWND hwnd,
        RECT DrawRegion,
		D2D1_RENDER_TARGET_PROPERTIES Properties = D2D1::RenderTargetProperties()
		);

hwnd 窗口句柄
DrawRegion 绘制区域（相对于第一参数）
Properties 高级选项，默认D2D1_RENDER_RAEGET_TYPE_DEFAULT

慎用此函数，此函数可能使部分WIC类函数失效并报错！

D2DEngine::ChangeRenderSize

改变渲染区域

bool ChangeRenderSize(LPARAM lParam);

lParam 附加消息

常常用于窗口改变大小时的处理：WM_SIZE

bool ChangeRenderSize(T width, T height);

width 要改变的宽度
height 要改变的长度

D2DEngine::ChangeBrushColor

改变普通画刷颜色

void ChangeBrushColor(const D2D1::ColorF Color);

color 颜色

Initialize函数会自动创建普通画刷！

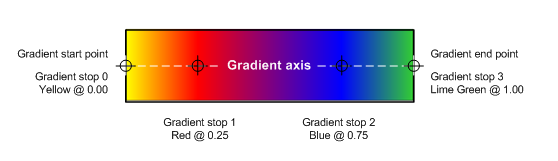

D2DEngine::ChangeLinearBrushColor

改变线性渐变画刷颜色

bool ChangeLinearGradientBrushColor(
		std::vector<D2D1::ColorF> ColorGroup,
		std::vector<float> GradientRatio,
		D2D1_POINT_2F Begin,
		D2D1_POINT_2F End
		);

ColorGroup 颜色组
GradientRatio 渐变比例
Begin 渐变轴起点
End 渐变轴终点

注意：
1.各画刷设备互不共用,互不影响
2.第一参数和第二参数的个数必须相同,否则会返回false
3.渐变轴起点和终点可以确定渐变方向
4.第一次调用该函数将视为创建！

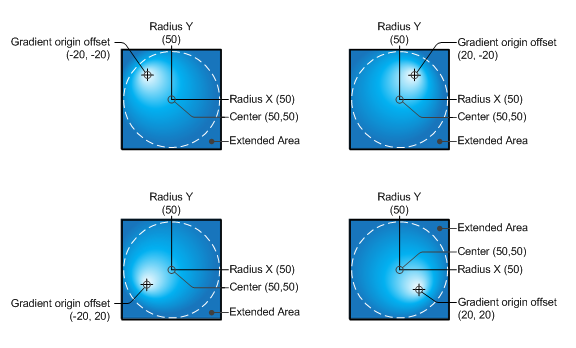

D2DEngine::ChangeRadialBrushColor

改变径向渐变画刷颜色

bool ChangeRadialGradientBrushColor(
		std::vector<D2D1::ColorF> ColorGroup,
		std::vector<float> GradientRatio,
		D2D1_POINT_2F Center,
		D2D1_POINT_2F OriginOffect,
		float RadiusX,
		float RadiusY
		);

ColorGroup 颜色组
GradientRatio 渐变比例
Center 渐变中心（起点）
OriginOffset 渐变中心偏移量
RadiusX 渐变X半长轴
RadiusY 渐变Y半长轴

注意：
1.各画刷设备互不共用,互不影响
2.第一参数和第二参数的个数必须相同,否则会返回false
3.渐变起点和终点可以确定渐变方向
4.第一次调用该函数将视为创建！

D2DEngine::ChangeStrokeStyle

改变线条风格

bool ChangeStrokeStyle(
        const D2D1_STROKE_STYLE_PROPERTIES Strokestyle,
		std::initializer_list<float> dashes
		);

Strokestyle 线条风格
dashes 线条间隔组

注意：
1.第一次调用该函数将视为创建！
2.当且仅当绘制线段或图形边廓时才生效

D2DEngine::ChangeTextFormat

改变文本样式

bool ChangeTextFormat(
        float FontSize,
        D2D1::ColorF TextColor,
		WCHAR* FontFamilyName = L"新宋体"
		);

FontSize 字体大小
TextColor 字体颜色
FontFamilyName 字体簇，默认"新宋体"

注意：
1.如果字体簇找不到会使用系统默认字体 (不会发生COM错误)
2.使用ChangeBrushColor函数也可以改变字体颜色

D2DEngine::CreateLayer

创建图层

bool CreateLayer(D2DLayer& Layer);

Layer 要创建的图层对象

D2DEngine::CreateRectangle

创建矩形

bool CreateRectangle(D2DRectangle& Rectangle);

Rectangle 要创建的矩形类

D2DEngine::CreateRoundedRectangle

创建圆角矩形

bool CreateRoundedRectangle(D2DRoundedRectangle& RoundedRectangle);

RoundedRectangle 要创建的圆角矩形类

D2DEngine::CreateEllipse

创建椭圆

bool CreateEllipse(D2DEllipse& Ellipse);

Ellipse 要创建的椭圆类

D2DEngine::OpenGeometryDevice

启动自定义图形绘制设备

bool OpenGeometryDevice(
        D2DCustomGeometry& Geometry,
        bool IsAlternate = false
        );

Geometry 要创建的自定义图形
IsAlternate 是否交替填充,默认为否

注意：
启动设备会把传入的Geometry重置

D2DEngine::AddLineGeometry

添加由直线组成的多边形

void AddLineGeometry(
        std::vector<D2D1_POINT_2F> Points,
		bool Fillmode = false,
		bool Openmode = false
		);

Points 顶点数组
Fillmode 填充模式,默认无填充
Openmode 设置为封闭图形,默认为是

D2DEngine::AddArcGeometry

添加圆弧

void AddArcGeometry(
        D2D1_POINT_2F BeginPoint,
        D2D1_POINT_2F EndPoint,
		D2D1_SIZE_F XYRadius,
		float RotationAngle,
		bool Fillmode = false,
		bool Openmode = false,
		D2D1_SWEEP_DIRECTION SweepDirection = D2D1_SWEEP_DIRECTION_CLOCKWISE,
		D2D1_ARC_SIZE ArcSize = D2D1_ARC_SIZE_SMALL
		);

BeginPoint 起点
EndPoint 终点
XYRadius XY半长轴
RotationAngle 旋转角度
Fillmode 填充模式,默认无填充
Openmode 设置为封闭图形,默认为是
SweepDirection 扫描方向,默认顺时针
ArcSize 绘制超过180°的圆弧,默认为否

D2DEngine::AddBezierGeometry

添加贝塞尔曲线

void AddBezierGeometry(
        D2D1_POINT_2F Points[4],
        bool Fillmode = false,
        bool Openmode = false
        );

Points 顶点数组
Fillmode 填充模式,默认无填充
Openmode 设置为封闭图形,默认为是

顶点数组需要4个顶点： 起点,两个控制点,终点

D2DEngine::AddBezierGeometries

批量添加贝塞尔曲线

void AddBezierGeometries(
		D2D1_POINT_2F BeginPoint,
		std::initializer_list<D2D1_BEZIER_SEGMENT> Points,
		bool Fillmode = false,
		bool Openmode = false
		);

BeginPoint 起始点
Points 顶点数组
Fillmode 填充模式,默认无填充
Openmode 设置为封闭图形,默认为是

每个顶点数组由3点组成：两个控制点,终点

D2DEngine::AddQuadraticBezierGeometry

添加二次贝塞尔曲线

void AddQuadraticBezierGeometry(
        D2D1_POINT_2F Points[3],
        bool Fillmode = false,
        bool Openmode = false
        );

顶点数组需要3个顶点：起点,控制点,终点

D2DEngine::AddQuadraticBezierGeometries

批量添加二次贝塞尔曲线

void AddQuadraticBezierGeometries(
		D2D1_POINT_2F BeginPoint,
		std::initializer_list<D2D1_QUADRATIC_BEZIER_SEGMENT> Points,
		bool Fillmode = false,
		bool Openmode = false
		);

BeginPoint 起始点
Points 顶点数组
Fillmode 填充模式,默认无填充
Openmode 设置为封闭图形,默认为是

每个顶点数组由2点组成： 控制点,终点

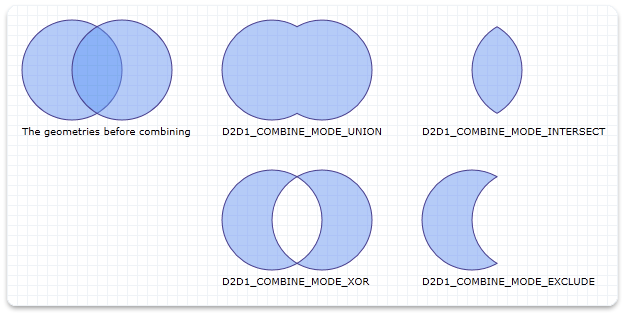

D2DEngine::AddCombineGeometry

添加合并图形

bool AddCombineGeometry(
        ID2D1Geometry* OperatingGeometry,
        ID2D1Geometry* InputGeometry,
		D2D1_COMBINE_MODE Combinemode,
		D2D1_MATRIX_3X2_F TransformedMatrix = D2D1::Matrix3x2F::Identity()
		);

OperatingGeometry 要操作的图形A
InputGeometry 输入图形B
Combinemode 合并模式

TransformedMatrix 变换矩阵,默认单位矩阵

注意：
1.合并的图形将传入至D2DCustomGeometry(OpenGeometryDevice)中,发生COM错误时返回false
2.图形A和图形B必须先调用相应的Create函数创建好,否则会发生错误!

D2DEngine::CloseGeometryDevice

关闭自定义图形绘制设备,并同时创建自定义图形

bool CloseGeometryDevice(D2DCustomGeometry& Geometry);

Geometry 在OpenGeometryDevice中传入的D2DCustomGeometry

OpenGeometryDevice(Geometry);
Add_ ... // 在这里添加图形
CloseGeometryDevice(Geometry);

D2DEngine::SetTransform

将渲染目标进行转换

void SetTransform(D2D1_MATRIX_3X2_F Matrix);

Matrix 转换矩阵

注意转换后渲染目标上的图形边廓会变粗

—————————————————————————————————————————————————————

渲染类

D2DEngine::BeginDraw

开始渲染，将后缓冲区切换至渲染状态

void BeginDraw();

D2DEngine::EndDraw

结束渲染，后缓冲区切换至呈现状态，前后缓冲区进行交换

bool EndDraw();

D2DEngine::Clear

清理渲染目标并填充背景色

void Clear(const D2D1::ColorF ClearColor = D2D1::ColorF::White);

ClearColor 要填充的背景色，默认白色

D2DEngine::PushLayer

添加一层图层

void PushLayer(
        D2DLayer Layer,
        D2D1_LAYER_PARAMETERS LayerParameters = D2D1::LayerParameters());

Layer 已创建的图层
LayerParameters 指定图层属性,默认系统赋值

注意：
1.图层可嵌套
2.此函数必须放在BeginDraw函数之后才能执行

D2DEngine::PopLayer

弹出一层图层

void PopLayer();

Engine->BeginDraw();
Engine->PushLayer(Layer);
todo... //在这里进行代码渲染
Engine->PopLayer();
Engine->EndDraw();

D2DEngine::DrawBitmap

绘制单帧位图

void DrawBitmap(
        D2DBitmap Bitmap,
        float x,
        float y,
        float width,
        float height
        );

Bitmap 位图
x X坐标
y Y坐标
width 宽
height 高

void DrawBitmap(
        D2DBitmap Bitmap,
        D2D_RECT_F ClipRegion,
        D2D_RECT_F DrawRegion,
        float Alpha = 1.0f
        );

Bitmap 原位图
ClipRegion 原位图裁剪范围
DrawRegion 原位图绘制到目标的范围
Alpha 透明度,默认不透明

D2DEngine::Drawtext

绘制单色文本

void Drawtext(
        WCHAR* text,
        float x,
        float y,
        float width,
        float height
        );

text 绘制文本
x X坐标
y Y坐标
width 绘制区域的宽
height 绘制区域的高

D2DEngine::DrawLine

绘制直线

void DrawLine(
        float BeginX,
        float BeginY,
        float EndX,
        float EndY,
		float StrokeWidth,
		D2D_Brush_Type BrushType
		);

BeginX 起点的X坐标
BeginY 起点的Y坐标
EndX 终点的X坐标
EndY 终点的Y坐标
StrokeWidth 线条宽度
BrushType 画刷类型

D2DEngine::DrawRectangle

绘制矩形轮廓

void DrawRectangle(
        D2DRectangle Rectangle,
        float StrokeWidth,
        D2D_Brush_Type BrushType
        );

Rectangle 已创建的矩形类
StrokeWidth 轮廓宽度
BrushType 画刷类型

D2DEngine::FillRectangle

填充矩形

void FillRectangle(
        D2DRectangle Rectangle,
        D2D_Brush_Type BrushType
        );

Rectangle 已创建的矩形类
BrushType 画刷类型

D2DEngine::DrawRoundedRectangle

绘制圆角矩形轮廓

void DrawRoundedRectangle(
		D2DRoundedRectangle RoundedRectangle,
		float StrokeWidth,
		D2D_Brush_Type BrushType
		);

RoundedRectangle 已创建的圆角矩形类
StrokeWidth 轮廓宽度
BrushType 画刷类型

D2DEngine::FillRoundedRectangle

填充圆角矩形

void FillRoundedRectangle(
		D2DRoundedRectangle RoundedRectangle,
		D2D_Brush_Type BrushType
		);

RoundedRectangle 已创建的圆角矩形类
BrushType 画刷类型

D2DEngine::DrawEllipse

绘制椭圆轮廓

void DrawEllipse(
		D2DEllipse Ellipse,
		float StrokeWidth,
		D2D_Brush_Type BrushType
		);

Ellipse 已创建的椭圆类
StrokeWidth 轮廓宽度
BrushType 画刷类型

D2DEngine::FillEllipse

填充椭圆

void FillEllipse(
		D2DEllipse Ellipse,
		D2D_Brush_Type BrushType
		);

Ellipse 已创建的椭圆类
BrushType 画刷类型

D2DEngine::DrawCustomGeometry

绘制自定义图形轮廓

void DrawCustomGeometry(
		D2DCustomGeometry CustomGeometry,
		float StrokeWidth,
		D2D_Brush_Type BrushType
		);

CustomGeometry 已创建的自定义图形类
StrokeWidth 轮廓宽度
BrushType 画刷类型

D2DEngine::FillCustomGeometry

填充自定义图形

void FillCustomGeometry(
		D2DCustomGeometry CustomGeometry,
		D2D_Brush_Type BrushType
		);

CustomGeometry 已创建的自定义图形类
BrushType 画刷类型

—————————————————————————————————————————————————————

WIC类

windows 图片组件 （windows image component，WIC），功能极其强大，提供了图片转换所需的解码器和编码器接口，是D2DEngine位图操作的核心

D2DEngine::RenderTargetShot

截取渲染目标的图像并输出为D2D位图

D2DBitmap RenderTargetShot();

D2DEngine::GetPictureFrame

获取图片帧数

UINT GetPictureFrame(D2DBitmap& Bitmap);

D2DBitmap 要解析的图片

D2DEngine::TransformPictureIntoBitmap

转换图片

bool TransformPictureIntoBitmap(D2DBitmap& Bitmap);

Bitmap 要解析的位图

bool TransformPictureIntoBitmap(
		D2DBitmap& Bitmap,
		D2DBitmapGroup& BitmapGroup
		);

Bitmap 要解析的位图
BitmapGroup 要输出的图组

D2DEngine::PackRenderTargetAsImageFile

打包渲染目标上的图像,变成位图文件

bool PackRenderTargetAsImageFile(
		WCHAR* Pathname,
		WCHAR* Filename,
		Picture_Format TransformFormat
		);

Pathname 路径名
Filename 文件名
TransformFormat 将转换的格式(拓展名)

注意：
1.路径名为空会默认在可执行文件所在磁盘创建文件
2.路径名不存在不会创建文件，并返回false
3.文件名可为空

D2DEngine::PackD2DBitmapAsImageFile

打包静态（动态）D2D位图成图像文件

bool PackD2DBitmapAsImageFile(
		WCHAR* Pathname,
		WCHAR* Filename,
		Picture_Format TransformFormat,
		D2DBitmap Bitmap
		);

Pathname 路径名
Filename 文件名
TransformFormat 将转换的格式(拓展名)
Bitmap 要传入的D2D位图

bool PackD2DBitmapAsImageFile(
		WCHAR* Pathname,
		WCHAR* Filename,
		Picture_Format TransformFormat,
		D2DBitmapGroup BitmapGroup
		);

Pathname 路径名
Filename 文件名
TransformFormat 将转换的格式(拓展名)
BitmapGroup 要传入的位图组

—————————————————————————————————————————————————————

D2DBitmap

D2DBitmap::GetBitmapFileName

获取D2DBitmap类内部存储的图片路径

WCHAR* GetBitmapFileName();

D2DBitmap::ChangeFileName

改变D2DBitmap类存储的图片文件路径

bool ChangeFileName(WCHAR* Filename);

Filename 文件路径名

D2DBitmap::CheckFileIfExist

检测某路径是否存在

bool CheckFileIfExist(WCHAR* Filename);

Filename 文件路径名

D2DBitmap::CheckFileSelfIfExist

检测位图自身路径是否存在

bool CheckFileSelfIfExist();

—————————————————————————————————————————————————————

D2D图形类

基类成员函数

注意：
1.基类成员函数在派生类除Clear方法被重写外，其余一致相同
2.图形类分为原图形和变换图形，若类内存储的变换矩阵容器存在元素，将默认创建并使用变换图形！

D2DBasicGeometry::GetReadOnlyTransformedMatrixes

以只读方式返回对象里的变换矩阵容器

std::vector<D2D1_MATRIX_3X2_F> GetReadOnlyTransformedMatrixes();

D2DBasicGeometry::GetReferencedTransformedMatrixes

以引用方式返回对象里的变换矩阵容器

std::vector<D2D1_MATRIX_3X2_F>& GetReferencedTransformedMatrixes();

D2DBasicGeometry::Clear

重置图形

virtual void Clear();

Clear方法均被其派生类重写

D2DBasicGeometry::ClearTransform

清除变换,清除变换后将不会使用转换后的图形

void ClearTransform();

D2DBasicGeometry::GetSize

返回变换矩阵容器的大小

size_t GetSize();

D2DBasicGeometry::Empty

检测矩阵是否为空,若容器为空,返回true

bool Empty();

D2DBasicGeometry::Identity

返回单位矩阵（任意3x2矩阵乘它都等于其本身）

D2D1_MATRIX_3X2_F Identity();

D2DBasicGeometry::Scale

返回缩放转换

D2D1_MATRIX_3X2_F Scale(
		float ScaleX,
		float ScaleY,
		float width,
		float height
		);

ScaleX 缩放点X轴坐标
ScaleY 缩放点Y轴坐标
width X轴缩放长度
height Y轴缩放长度

D2DBasicGeometry::Translation

返回平移转换

D2D1_MATRIX_3X2_F Translation(
		float MoveX,
		float MoveY
		);

MoveX X轴平移距离
MoveY Y轴平移距离

D2DBasicGeometry::Rotation

返回旋转转换

D2D1_MATRIX_3X2_F Rotation(
		float x,
		float y,
		float angle
		);

x 旋转点X轴坐标
y 旋转点Y轴坐标
angle 旋转角度

D2DBasicGeometry::Skew

返回倾斜转换

D2D1_MATRIX_3X2_F Skew(
		float x,
		float y,
		float angleX,
		float angleY
		);

x 倾斜点X轴坐标
y 倾斜点Y轴坐标
angleX X轴倾斜角度
angleY Y轴倾斜角度

D2DBasicGeometry::AddScale

在变换矩阵容器尾部添加缩放转换

void AddScale(
		float ScaleX,
		float ScaleY,
		float width,
		float height
		);

ScaleX 缩放点X轴坐标
ScaleY 缩放点Y轴坐标
width X轴缩放长度
height Y轴缩放长度

D2DBasicGeometry::AddTranslation

在变换矩阵容器尾部添加平移转换

void AddTranslation(
		float MoveX,
		float MoveY
		);

MoveX X轴平移距离
MoveY Y轴平移距离

D2DBasicGeometry::AddRotation

在变换矩阵容器尾部添加旋转转换

void AddRotation(
		float x,
		float y,
		float angle
		);

x 旋转点X轴坐标
y 旋转点Y轴坐标
angle 旋转角度

D2DBasicGeometry::AddSkew

在变换矩阵容器尾部添加倾斜转换

void AddSkew(
		float x,
		float y,
		float angleX,
		float angleY
		);

x 倾斜点X轴坐标
y 倾斜点Y轴坐标
angleX X轴倾斜角度
angleY Y轴倾斜角度

D2DBasicGeometry::append

在变换矩阵容器尾部批量添加变换矩阵

void append(std::initializer_list<D2D1_MATRIX_3X2_F> Matrixies);

Matrixies 矩阵组

D2DBasicGeometry::remove

清除指定索引（区间）的转换矩阵

bool remove(UINT Index);

Index 索引

bool remove(
		UINT BeginIndex,
		UINT EndIndex
		);

BeginIndex 起始索引
EndIndex 终止索引

注意：如果索引不存在,或者 EndIndex-BeginIndex < 0,都会返回false

D2DBasicGeometry::insert

在指定索引（批量）插入变换矩阵

bool insert(
		UINT Index,
		D2D1_MATRIX_3X2_F Matrix
		);

Index 索引
Matrix 变换矩阵

bool insert(
		UINT Index,
		std::initializer_list<D2D1_MATRIX_3X2_F> Matrixies
		);

Index 索引
Matrixies 变换矩阵组

—————————————————————————————————————————————————————

D2DEngineSpace

D2DEngineSpace::D2D_Clip

用于图层，限定绘制区域，此区域外的绘制操作将会被覆盖

D2D1_LAYER_PARAMETERS D2D_Clip(
		float x,
		float y,
		float width,
		float height
		);

x 相对渲染目标的X坐标
y 相对渲染目标的Y坐标
width 宽
height 高
