使用dnd-kit实现拖拽排序

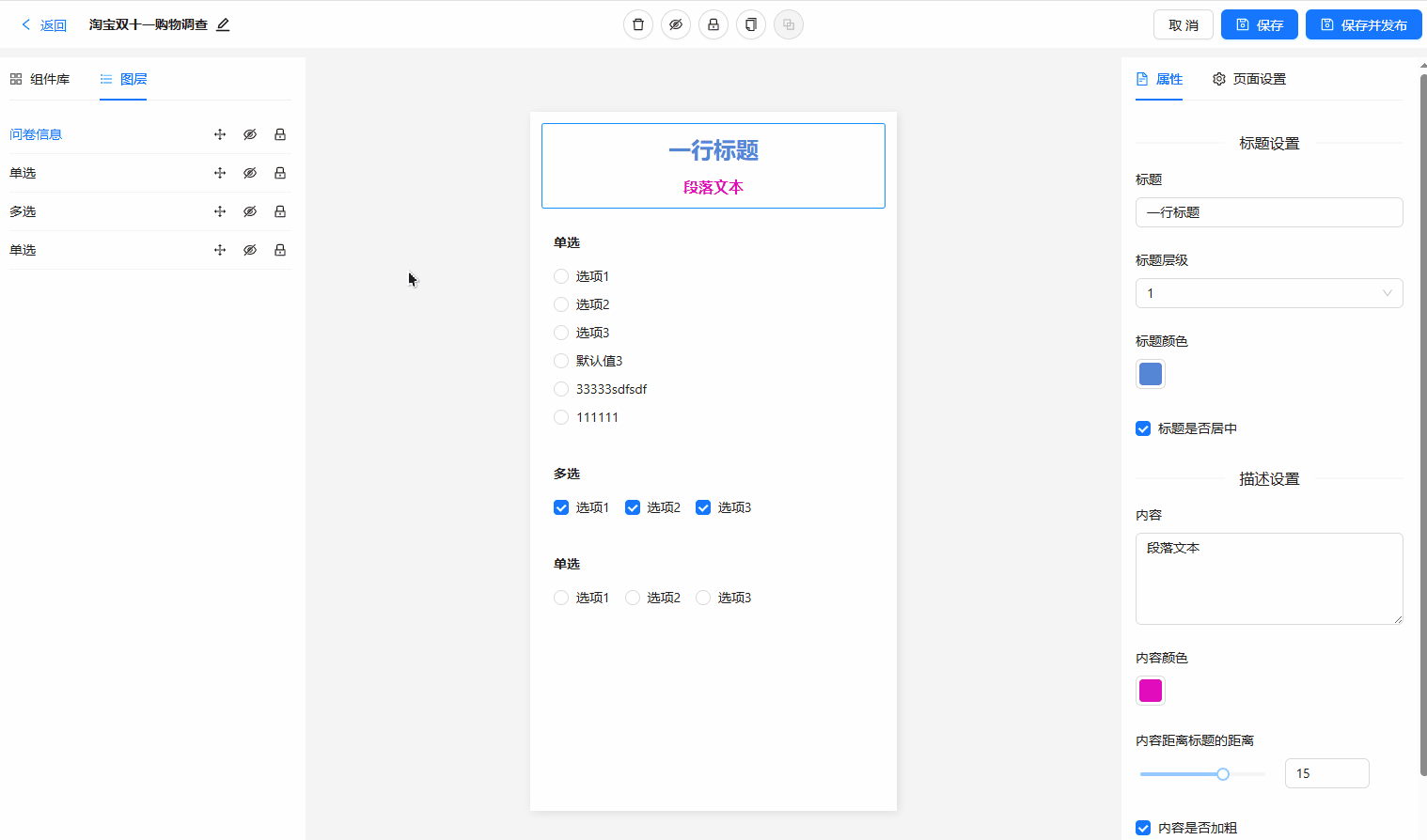

效果展示
安装依赖
dad-kit github地址
yarn add @dnd-kit/core @dnd-kit/sortable @dnd-kit/utilities @dnd-kit/modifiers
这几个包的作用
- @dnd-kit/core：核心库，提供基本的拖拽功能。
- @dnd-kit/sortable：扩展库，提供排序功能和工具。
- @dnd-kit/modifiers：修饰库，提供拖拽行为的限制和修饰功能。
- @dnd-kit/utilities：工具库，提供 CSS 和实用工具函数。上述演示的平滑移动的样式就是来源于这个包。
实现代码
最外层使用 DndContext 组件，然后内层使用 SortableContext，并且传入列表信息，SortableContext 内层正常显示循环出来的DOM元素
import React, { ChangeEvent, FC, useState } from 'react'
import useGetComponentInfo from '../../hooks/useGetComponentInfo'
import { Button, Flex, Input, message, Space } from 'antd'
import style from './Layerlib.module.scss'
import { EyeInvisibleOutlined, LockOutlined, DragOutlined } from '@ant-design/icons'
import classNames from 'classnames'
import { useDispatch } from 'react-redux'
import {
changeSelectedId,
changeComponentTitle,
componentInfoType,
hiddenComponent,
toogleLock,
reorderComponents
} from '../../store/componentsReducer'
import type { DragEndEvent, DragMoveEvent } from '@dnd-kit/core'
import { DndContext } from '@dnd-kit/core'
import { arrayMove, SortableContext, rectSortingStrategy, useSortable } from '@dnd-kit/sortable'
import { restrictToParentElement } from '@dnd-kit/modifiers'
import { CSS } from '@dnd-kit/utilities'
export default function Layerlib() {
// 记录当前正在修改的id
const [changingId, setChangingId] = useState('')
const { componentsList, selectedId } = useGetComponentInfo()
const dispatch = useDispatch()
// 点击组件
function handleClick(component: componentInfoType) {
const { _id, isHidden } = component
if (isHidden) {
message.error('不能选中被隐藏的组件')
return
}
if (_id !== selectedId) {
dispatch(changeSelectedId(_id))
setChangingId('')
} else {
setChangingId(_id)
}
}
// 修改组件标题
function handleChangeTitle(event: ChangeEvent<HTMLInputElement>, id: string) {
const value = event.target.value.trim()
if (!value) return
dispatch(changeComponentTitle({ _id: id, title: value }))
}
// 切换组件隐藏和显示
function handleToggleHidden(component: componentInfoType) {
const { _id, isHidden } = component
dispatch(hiddenComponent({ _id, isHidden: !isHidden }))
}
// 切换锁定
function handleToggleLock(component: componentInfoType) {
const { _id } = component
dispatch(toogleLock({ _id }))
}
// 拖动排序
const getMoveIndex = (array: componentInfoType[], dragItem: DragMoveEvent) => {
const { active, over } = dragItem
const activeIndex = array.findIndex(item => item._id === active.id)
const overIndex = array.findIndex(item => item._id === over?.id)
// 处理未找到索引的情况
return {
activeIndex: activeIndex !== -1 ? activeIndex : 0,
overIndex: overIndex !== -1 ? overIndex : activeIndex
}
}
// 拖动结束
const dragEndEvent = (dragItem: DragEndEvent) => {
const { active, over } = dragItem
if (!active || !over) return // 处理边界情况
const moveDataList = [...componentsList]
const { activeIndex, overIndex } = getMoveIndex(moveDataList, dragItem)
if (activeIndex !== overIndex) {
const newDataList = arrayMove(moveDataList, activeIndex, overIndex)
// 关键：更新一下最新的组件数据
dispatch(reorderComponents(newDataList))
}
}
type DraggableItemProps = {
component: componentInfoType
}
// 拖拽的子组件
const DraggableItem: FC<DraggableItemProps> = ({ component }) => {
const { _id, isLock, isHidden } = component
const { setNodeRef, attributes, listeners, transform, transition } = useSortable({
id: _id,
transition: {
duration: 500,
easing: 'cubic-bezier(0.25, 1, 0.5, 1)'
}
})
const styles = {
transform: CSS.Transform.toString(transform),
transition
}
// 动态样式
const componentClass = classNames({
[style.check]: _id === selectedId,
[style.hidden]: isHidden
})
return (
<Flex
key={_id}
align="center"
justify="space-between"
gap={10}
className={style.layerItem}
ref={setNodeRef}
style={styles}
>
<div className={componentClass} style={{ flex: 1 }} onClick={() => handleClick(component)}>
{changingId === _id ? (
<Input
value={component.title}
autoFocus
onChange={event => handleChangeTitle(event, component._id)}
onPressEnter={() => setChangingId('')}
onBlur={() => setChangingId('')}
/>
) : (
component.title
)}
</div>
<Space>
{/* 拖动排序 */}
<Button
size="small"
shape="circle"
icon={<DragOutlined />}
type="text"
style={{
cursor: 'move'
}}
{...attributes}
{...listeners}
/>
<Button
size="small"
shape="circle"
icon={<EyeInvisibleOutlined />}
type={isHidden ? 'primary' : 'text'}
onClick={() => handleToggleHidden(component)}
/>
<Button
size="small"
shape="circle"
icon={<LockOutlined />}
type={isLock ? 'primary' : 'text'}
onClick={() => handleToggleLock(component)}
/>
</Space>
</Flex>
)
}
return (
<DndContext onDragEnd={dragEndEvent} modifiers={[restrictToParentElement]}>
<SortableContext items={componentsList.map(item => item._id)} strategy={rectSortingStrategy}>
<div className="drag-container">
{componentsList.map(component => (
<DraggableItem key={component._id} component={component} />
))}
</div>
</SortableContext>
</DndContext>
)
}
代码解释
modifiers
标识符，传入一个标识符数组以限制在父组件进行拖曳的行为。我们代码中使用 restrictToParentElement，限制在父元素内的标识符，主要可选的一些标识符如下：
- restrictToParentElement：限制在父元素内。
- restrictToFirstScrollableAncestor：限制在第一个可滚动祖先元素。
- restrictToVerticalAxis：限制在垂直轴上。
- restrictToHorizontalAxis：限制在水平轴上。
- restrictToBoundingRect：限制在指定矩形区域内。
- snapCenterToCursor：使元素中心对齐到光标。
onDragEnd
顾名思义，就是用户鼠标松开后触发的拖曳事件的回调。触发时会自动传入类型为 DragEndEvent 的对象，我们可以从其中拿出 active 和 over 两个参数来具体处理拖曳事件。
active 包含 正在拖曳的元素的相关信息，over 包含最后鼠标松开时所覆盖到的元素的相关信息。
import { arrayMove } from '@dnd-kit/sortable'
// 拖动排序
const getMoveIndex = (array: componentInfoType[], dragItem: DragMoveEvent) => {
const { active, over } = dragItem
const activeIndex = array.findIndex(item => item._id === active.id)
const overIndex = array.findIndex(item => item._id === over?.id)
// 处理未找到索引的情况
return {
activeIndex: activeIndex !== -1 ? activeIndex : 0,
overIndex: overIndex !== -1 ? overIndex : activeIndex
}
}
// 拖动结束
const dragEndEvent = (dragItem: DragEndEvent) => {
const { active, over } = dragItem
if (!active || !over) return // 处理边界情况
const moveDataList = [...componentsList]
const { activeIndex, overIndex } = getMoveIndex(moveDataList, dragItem)
if (activeIndex !== overIndex) {
const newDataList = arrayMove(moveDataList, activeIndex, overIndex)
// 关键：更新一下最新的组件数据
dispatch(reorderComponents(newDataList))
}
}
我们的代码中，从 dragItem 中解构出 active, over 这两个变量，分别代表当前拖拽的组件数据和被覆盖的组件数据，然后通过 @dnd-kit/sortable 提供的 arrayMove 方法得到排序后的组件列表，接着使用dispatch更新Redux中的数据，实现页面展示最新排序的效果
